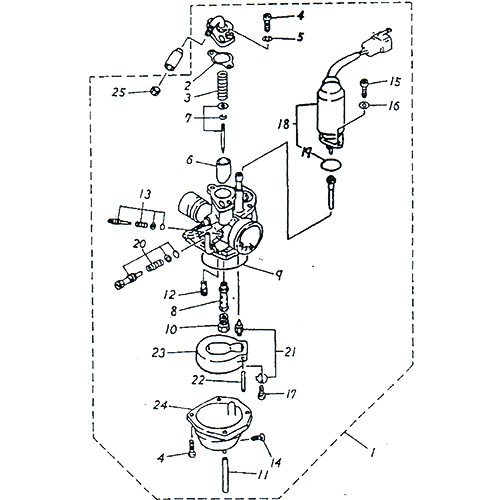

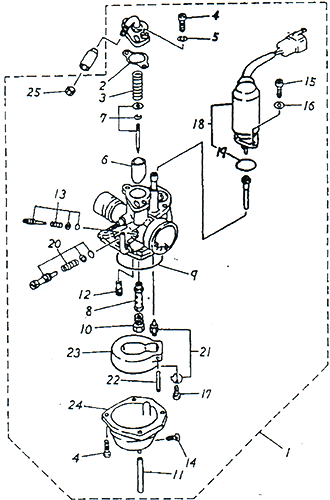

Carburetor OEM ADLY Scooter Panther 50cc 2002 Adly (Her Chee)
Change Assembly
OEM ADLY Scooter Panther 50cc 2002 Adly (Her Chee) ATV Parts
DRR Parts has a full virtual parts book and O.E.M parts for your Adly (Her Chee) Panther 50 49cc 2 stroke oil injection scooter. All parts are in stock and ready to ship from Ohio.
Learn more at: www.drrinc.com
Join the discussion: https://www.facebook.com/groups/DRRRiders
DRR Facebook: https://www.facebook.com/drratvs
DRR Twitter: https://twitter.com/DRRinc
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Carburetor Ass'Y
16100-116-00A
|
$131.56 | ||
| 2 |
Carburetor Gasket
16101-116-000
|
$2.19 | ||
| 3 |
Throttle Valve Spring
16102-116-000
|
$2.19 | ||
| 4 |
Pan Phillips Bolt, 4*14
93500-04014
|
$1.32 | ||
| 5 |
Spring Washer, 4*7*1
94111-0407010
|
$0.88 | ||
| 6 |
Throttle Valve
16103-116-000
|
$18.41 | ||
| 7 |
Needle Set
16104-116-000
|
$10.43 | ||
| 8 |
Needle Nozzle
16105-116-000
|
$9.21 | ||
| 9 |
Float Chamber Seal
16106-116-000
|
$8.34 | ||
| 10 |
Main Nozzle, (#75)
16108-116-000
|
$6.58 | ||
| 11 |
Over Flow Tube, 4*7
16109-116-000
|
$1.32 | ||
| 12 |
Pilot Jet, #17.5
16110-116-000
|
$9.21 | ||
| 13 |
Air Adjust Screw Set
16115-116-000
|
|||
| 14 |
Drain Plug
16111-116-000
|
$2.63 | ||
| 15 |
Pan Phillips Bolt, 4*8
93500-04008
|
|||
| 16 |
Spring Washer, 4*6.5*1
94111-0406510
|
|||
| 17 |
Pan Phillips Bolt, 3*6
93500-03008
|
$1.32 | ||
| 18 |
Plunger Starter
17215-116-000
|
$119.72 | ||
| 19 |
Oil Ring, 14*1.5
91314-116-000
|
$2.63 | ||
| 20 |
Throttle Screw Set
16114-116-000
|
