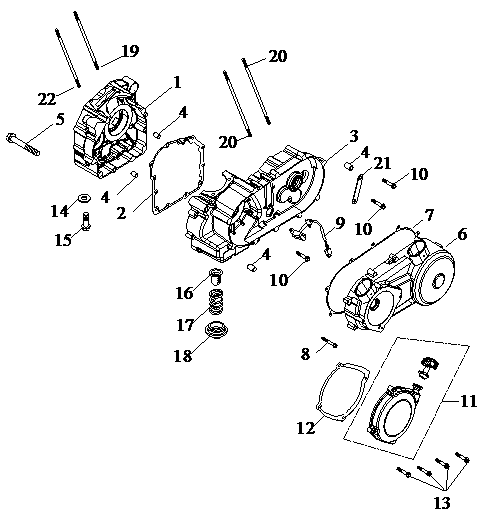

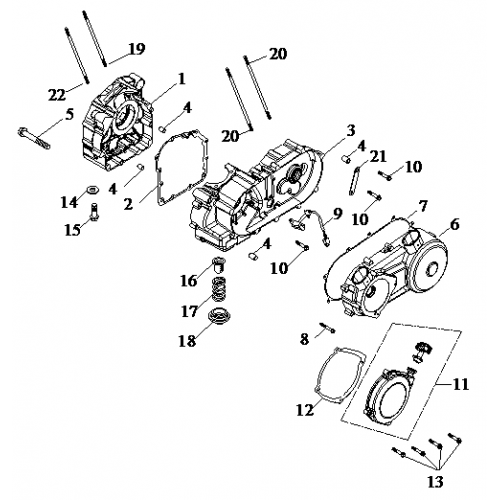

Crankcase
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankcase, Right
11100-E10-100
|
$284.41 | ||
| 2 |
Gasket, Crankcase
11349-E10-000
|
$18.98 | ||
| 3 |
Crankcase, Left
11200-E10-100
|
$596.60 | ||
| 4 |
Pin, Dowel, 10x14
94001-100140
|
$5.13 | ||
| 5 |
Hex Washer Face Bolt
P91700-06050-08G
|
$0.07 | ||
| 6 |
Cover, Left Crankcase
11340-E10-101
|
$215.71 | ||
| 7 |
Gasket, Left Crankcase
11395-E10-000
|
$28.36 | ||
| 8 |
Hex Washer Face Bolt
P91700-06040-08G
|
$1.40 | ||
| 9 |
Switch, Gear Change
61210-E10-101
|
$65.09 | ||
| 10 |
Hex Washer Face Bolt
P91700-06010-08C
|
$0.82 | ||
| 11 |
Pull Starter
11341-E10-000
|
$121.62 | ||
| 12 |
Gasket, Left Crankcase
11397-E10-000
|
$9.12 | ||
| 13 |
Hex Washer Face Bolt
P91700-06025-08G
|
$2.56 | ||
| 14 |
Washer, Plain
P93105-12020-20
|
$1.98 | ||
| 15 |
Plug, Oil Filter
91833-E10-001
|
$12.98 | ||
| 16 |
Net, Oil Filter
15281-E10-000
|
$9.62 | ||
| 17 |
Spring, Oil Filter Net
15282-E10-000
|
$3.12 | ||
| 18 |
Nut, Oil Filter Net
15280-E10-000
|
$13.15 | ||
| 19 |
Bolt, Stud
P91000-08220Z-7
|
$9.87 | ||
| 20 |
Bolt, Stud
P91000-08228Z-8
|
$10.52 |
