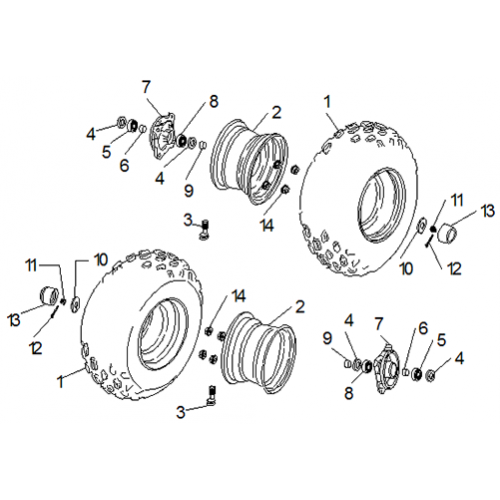

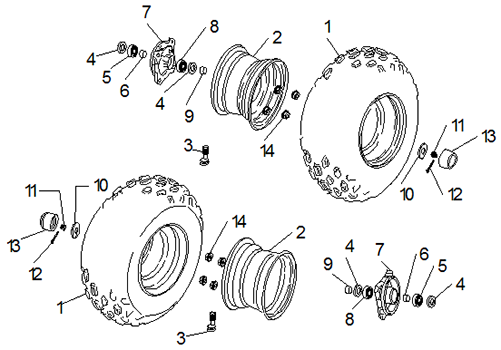

Front Tire

Change Assembly

Front Tire
# Product Code: Product Name Req'd Price:
1 24107-A01-000 Tire (Kenda K530F) 16*8*7 $157.87
2 24207-A01-100 Rim 7*5.2 $29.95
3 24106-A01-000 Tire Valve, Steel Rim, TR-412 $3.09
4 96500-22357 Seal, Oil, TC 22x35x7 $7.73
5 95100-T6003 Bearing,Ball, 6003 $18.03
6 93325-A01-200 Spacer, Inner $6.70
7 31105-A01-000 Drum Brake, Front $47.03
8 96100-6002 Bearing, 6002 2RS $18.18
9 93320-A01-100 Spacer, Outer $3.28
10 93100-12540-45G Washer, Plate $1.21
11 92140-12-17G Nut, Insert Lock $2.19
12 94000-03032 Cotter Pin, 3.2x32 $0.45
13 93615-A01-000 Cap, Rubber, PK-6142 $7.43
14 92130-10S-14G-1 Nut, Insert Lock, M10 $1.86
Showing 1 to 14 of 14 (1 Pages)
