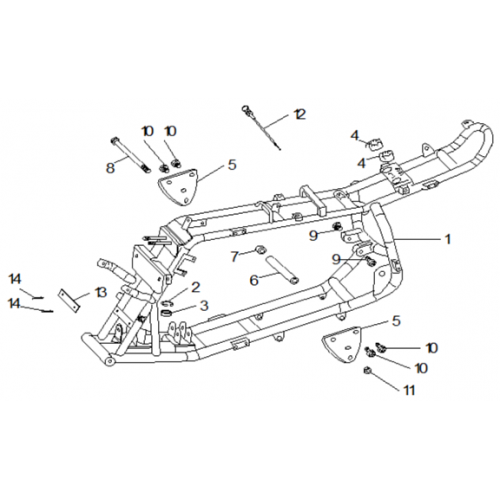

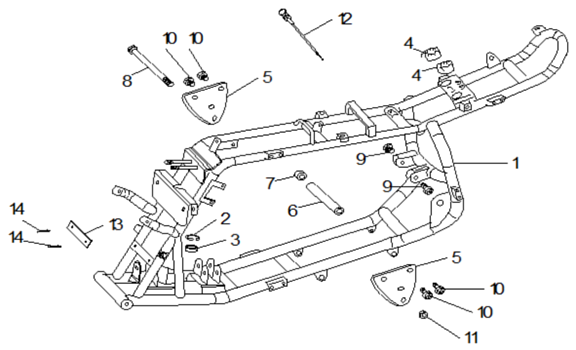

Frame
Change Assembly
| # | Product Code: | Product Name | Req'd | Price: | |
|---|---|---|---|---|---|
| 1 | 71000-A01-00F | Chassis | $830.05 | ||
| 2 | 93405-IRTW32A | Clip, Inner, IRTW-32 | $3.71 | ||
| 3 | 96100-6002 | Bearing, 6002 2RS | $18.18 | ||
| 4 | 93501-A01-000 | Coushion, Seat, 13x37x23 | $13.90 | ||
| 5 | 71205-A01-000 | Engine Holder Seat | $21.05 | ||
| 6 | 93305-A01-100 | Collar (Andoised) | $8.55 | ||
| 7 | 93310-A01-000 | Collar(Andoised), 12.5x17x20 | $8.55 | ||
| 8 | 91700-12220-14G | Hex Washer Face Bolt, M12x220 | $8.99 | ||
| 9 | 91710-08035-12G | Hex Washer Face Bolt, M8x35 | $1.81 | ||
| 10 | 91700-08012-12G | Hex Washer Face Bolt, M8x12 | $2.56 | ||
| 11 | 92130-12S-17G | Nut, Insert Lock, M12 | $5.84 | ||
| 12 | 31220-A01-011 | Choke Cable | $10.97 | ||
| 13 | 91835-A01-000 | Pulling Nail, 3.1x11 | $1.55 | ||
| 14 | 91760-06012-05G | Hex Socket Bolt, M6x12 | $1.55 |
