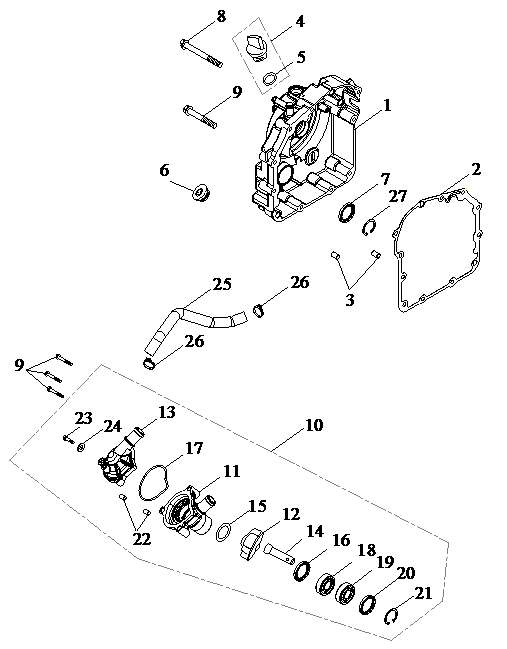

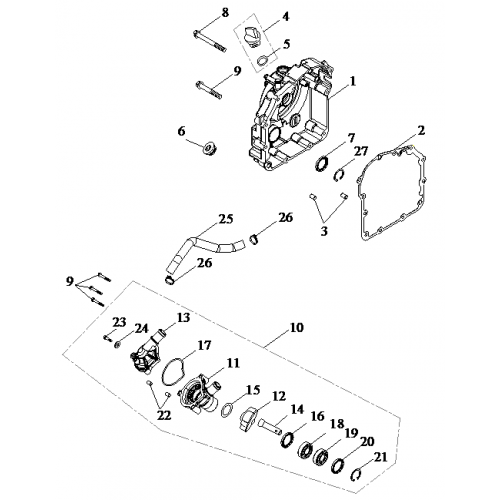

Right Crankcase, Water Pump
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, Right Crankcase
11350-E10-100
|
$213.33 | ||
| 2 |
Gasket, Right Crankcase
11393-E10-000
|
$18.98 | ||
| 3 |
Pin, Dowel, 10x14
94001-100140
|
$5.13 | ||
| 4 |
Oil Level Gauge
15550-E10-000
|
$10.27 | ||
| 5 |
O Ring
96200-180030
|
$3.04 | ||
| 6 |
Oil Window
96100-GW162510
|
$7.23 | ||
| 7 |
Seal, Oil
96100-122807
|
$13.80 | ||
| 8 |
Hex Washer Face Bolt
P91700-06135-08G
|
$4.11 | ||
| 9 |
Hex Washer Face Bolt
P91700-06045-08G
|
$1.72 | ||
| 10 |
Water Pump Ass'y
15200-E10-000
|
$209.96 | ||
| 11 |
Body, Water Pump
15212-E10-000
|
$49.96 | ||
| 12 |
Fan, Water Pump
15213-E10-000
|
$13.97 | ||
| 13 |
Cap, Water Pump
15215-E10-000
|
$29.92 | ||
| 14 |
Water Pump Shaft
15217-E10-000
|
$43.80 | ||
| 15 |
Oil Ring
96200-290020
|
$4.11 | ||
| 16 |
Mechanical Seal
15220-E10-000
|
$40.44 | ||
| 17 |
Gasket, Water Pump
15218-E10-000
|
$3.46 | ||
| 18 |
Bearing, Ball
95100-T6901
|
$21.37 | ||
| 19 |
Bearing, Ball
95100-T6000
|
$14.63 | ||
| 20 |
Seal, Oil
96100-12207
|
$4.93 |
