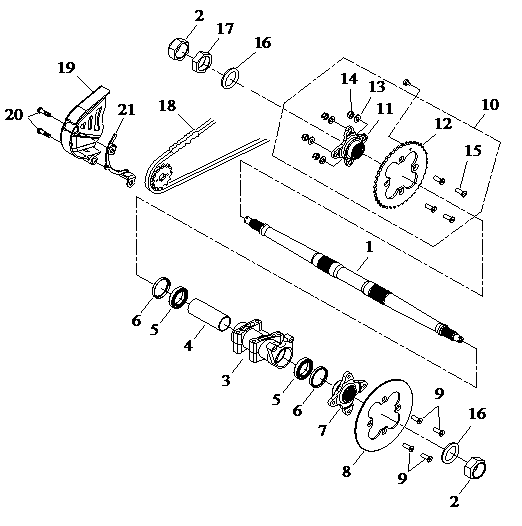

Rear Axle Ass'y
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Wheel Axle, Rear
23205-A03-000
|
$354.38 | ||
| 2 |
Hex, Acorn Nut
92112-38-46W
|
$15.41 | ||
| 3 |
Rear Axle Bearing Carrier
23215-A01-000
|
$190.33 | ||
| 4 |
Spacer, Rear Axle Bearing
93330-A03-100
|
$15.41 | ||
| 5 |
Bearing Ball
95100-6008NKE
|
$56.50 | ||
| 6 |
Seal, Oil
96100-506808
|
$5.14 | ||
| 7 |
Disc Connector
31355-A03-000
|
$82.18 | ||
| 8 |
Disc Plate
31350-A03-000
|
$118.13 | ||
| 9 |
Bolt
P91734-10020-06G
|
$1.93 | ||
| 10 |
Sprocket Ass'y Rear
23300-A03-000
|
$164.35 | ||
| 11 |
Sprocket Holder, Driven
23310-A03-000
|
$79.61 | ||
| 12 |
Sprocket
23305-A03-000
|
$79.61 | ||
| 13 |
Washer, Plate, 10x22x2
P93100-10022-20C
|
$2.16 | ||
| 14 |
Nut, Insert Lock
P92130-10N-17G
|
$1.93 | ||
| 15 |
Bolt
91733-10030-06G
|
$1.93 | ||
| 16 |
Washer, Disc
P93106-38550-30G
|
$4.49 | ||
| 17 |
Hex Acorn Nut
92110-38-46W
|
$10.91 | ||
| 18 |
Chain, 250S
23315-NP520S-096
|
$197.74 | ||
| 19 |
Guard, Chain
71222-A03-001
|
$12.20 | ||
| 20 |
Hex Washer Face Bolt
P91700-06038-10G
|
$1.93 |
