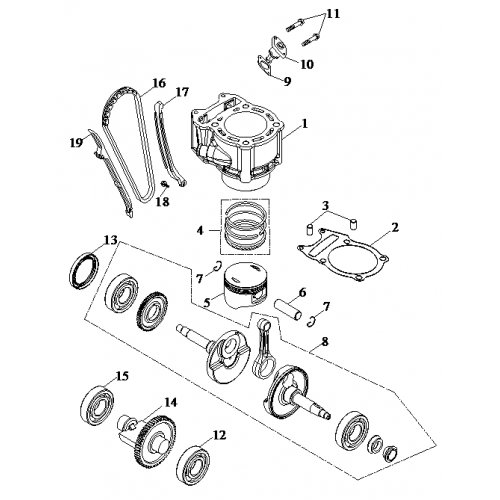

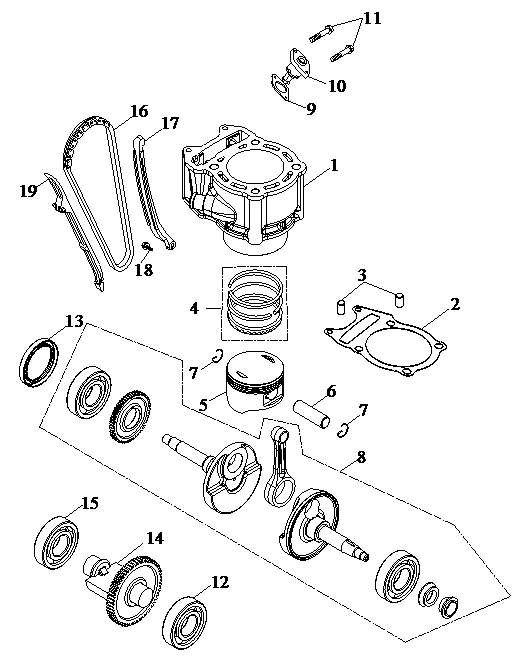

Piston, Crankshaft, Cylinder
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder
12100-E11-100
|
$388.28 | ||
| 2 |
Gasket, Cylinder
12191-E10-000
|
$70.61 | ||
| 3 |
Pin Dowel
94001-080140
|
$35.94 | ||
| 4 |
Rings, Piston
13310-E11-000
|
$75.61 | ||
| 5 |
Piston
13300-E11-000
|
$68.69 | ||
| 6 |
Pin, Piston
13400-E11-100
|
$32.09 | ||
| 7 |
Clip, Piston Pin
13410-E10-000
|
$12.83 | ||
| 8 |
Crankshaft Ass'y
13000-E11-A00
|
$828.58 | ||
| 9 |
Tensioner Lifter Gasket
14553-E10-000
|
$3.94 | ||
| 10 |
Adjuster, Chain
14550-E10-000
|
$34.68 | ||
| 11 |
Hex Washer Face Bolt
P91700-06016-08G
|
$5.34 | ||
| 12 |
Bearing, Ball
95100-T6205
|
$24.90 | ||
| 13 |
Seal, Oil
96100-274207
|
$18.49 | ||
| 14 |
Shaft, Balance
22370-E11-000
|
$189.83 | ||
| 15 |
Bearing, Ball
95100-T6205
|
$20.75 | ||
| 16 |
Chain, Cam
23318-E11-100
|
$70.61 | ||
| 17 |
Cam Chain Tensioner
14500-E10-000
|
$44.54 | ||
| 18 |
Cam Chain Tensioner Pivot
14505-E10-000
|
$67.72 | ||
| 19 |
Cam Chain Guide Comp
14503-E11-000
|
$30.57 |
