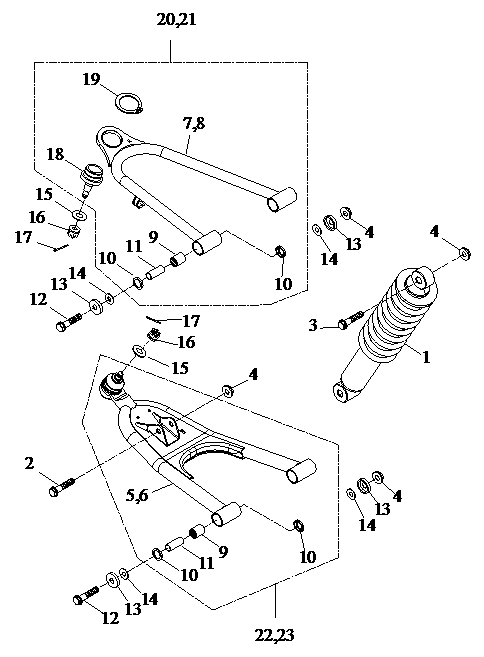

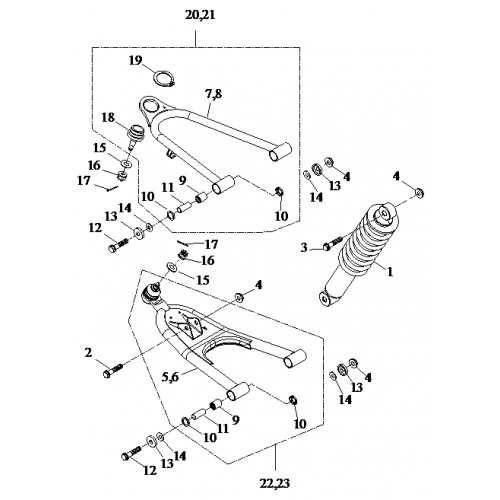

Front Shock
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Shock Absorber, Front
81200-A03-100
|
$385.20 | ||
| 2 |
Hex Washer Face Bolt
91700-10048-14G
|
$1.61 | ||
| 3 |
Hex Washer Face Bolt, M10x40
91700-10040-14G
|
$3.95 | ||
| 4 |
Nut - Lower A-Arm M10x1.25
92130-10S-14G-1
|
$1.99 | ||
| 5 |
A Arm, Lower Right
81111-A03-100
|
$228.55 | ||
| 6 |
A Arm, Lower Left
81106-A03-100
|
$228.55 | ||
| 7 |
A Arm, Upper Right
81110-A03-100
|
$84.74 | ||
| 8 |
A Arm, Upper Left
81105-A03-100
|
$84.74 | ||
| 9 |
Bearing, Needle
95200-HKH172425
|
$7.06 | ||
| 10 |
Seal, Oil
96100-172403
|
$1.93 | ||
| 11 |
Spacer
93300-1017-51
|
$12.84 | ||
| 12 |
Hex Washer Face Bolt
P91700-10074-14G
|
$4.49 | ||
| 13 |
Cover, Pivot Dust
93609-A03-010
|
$4.49 | ||
| 14 |
Washer, Plate
P93107-10228-10
|
$1.93 | ||
| 15 |
Washer - Ball Joint 10.5*17*2.6
P93100-10517-26G
|
$4.95 | ||
| 16 |
Lower Ball Joint Castle Nut
P92140-10-14G
|
$3.95 | ||
| 17 |
Cotter Pin - Upper A-Arm 2.5x25
94000-02525
|
$2.13 | ||
| 18 |
Ball Joint - Upper A-Arm
52316-A03-000
|
$52.52 | ||
| 19 |
Circlip Upper Ball Joint A-Arm #34
93406-STW34
|
$3.20 | ||
| 20 |
A Arm A'ssy, Upper Right
81010-A03-000
|
$179.76 |
