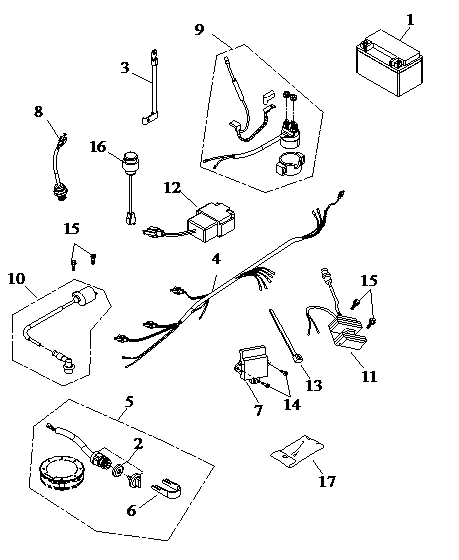

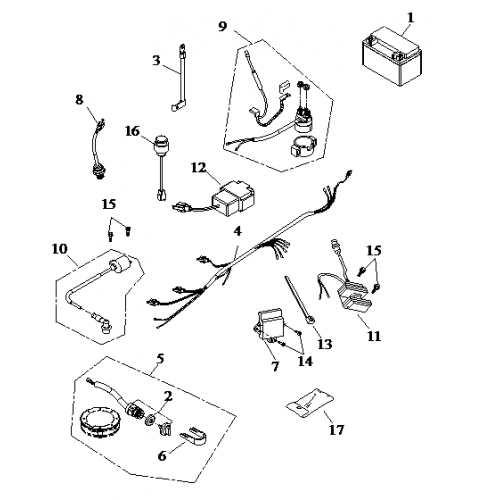

Electronics
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Battery
63205-A03-000
|
$141.24 | ||
| 2 |
Lock, Main Switch
61105-A03-000
|
$59.05 | ||
| 3 |
Cable, Ground Connection
63112-A03-000
|
$12.84 | ||
| 4 |
Main Wire Ass'y
63100-A03-010
|
$166.92 | ||
| 5 |
Main Switch Ass'y
61106-A03-010
|
$192.60 | ||
| 6 |
Clip, Main Switch
61107-A01-000
|
$7.97 | ||
| 7 |
C.D.I Unit
61115-A03-000
|
$205.44 | ||
| 8 |
Switch Footbrake
61205-A03-100
|
$35.95 | ||
| 9 |
Rectifier & Regulator
61120-A01-000
|
$238.51 | ||
| 09 |
Starter Relay, 12V,30A
61130-A01-100
|
$20.53 | ||
| 10 |
Ignition Coil
61109-A01-001
|
$64.19 | ||
| 13 |
Strap
93705-A01-000
|
$1.27 | ||
| 13 |
Switch, Gear Change
61215-A03-010
|
$97.58 | ||
| 14 |
Hex Bolt, Flange Washer
P91750-05016-08G
|
$1.07 | ||
| 15 |
Hex Washer Face Bolt, M6x16
91700-06016-10G
|
$2.13 | ||
| 16 |
Power Supplier-12V
61230-A03-000
|
$23.11 | ||
| 17 |
Tool Box
72105-A01-000
|
$12.83 |
