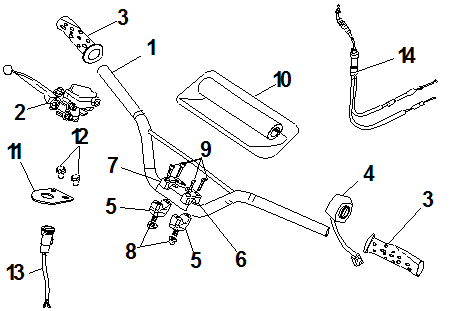

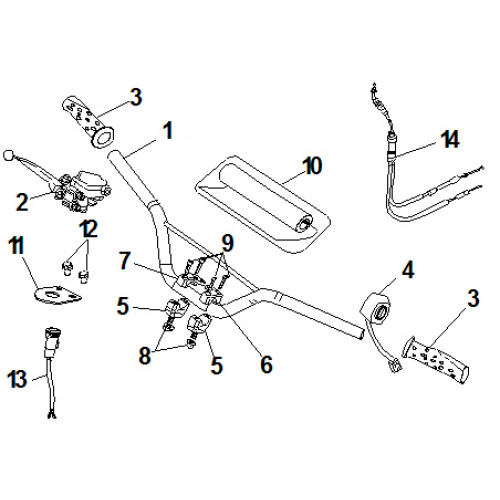

Handlebar, Lever
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Handlebar
51100-A01-010
|
|||
| 2 |
Lever Ass'Y,Right
31450-A01-020
|
$64.88 | ||
| 3 |
Grip, Handle(L), (LD-230)
51105-A01-000
|
$3.95 | ||
| 4 |
Handle Switch Ass'Y, Left
61100-A01-010
|
$81.70 | ||
| 5 |
Bottom Clamp, Handlebar
52105-A01-000
|
$23.98 | ||
| 6 |
Top Clamp, L. Handlebar
52110-A01-000
|
$8.51 | ||
| 7 |
Top Clamp, R. Handlebar
52115-A01-000
|
$8.51 | ||
| 8 |
Nut - Lower A-Arm M10x1.25
92130-10S-14G-1
|
$1.99 | ||
| 9 |
Screw, Hex. Socket
91760-06025-05G
|
$1.43 | ||
| 10 |
Pad,Handlebar (230mm)
51110-A01-010
|
$18.54 | ||
| 11 |
Fixed-Bracket, Indicate Light
52125-A01-00A
|
$12.06 | ||
| 12 |
Hex Socket Bolt, M6x12
91760-06012-05G
|
$1.55 | ||
| 13 |
Indicator Light, Oil(Red)
62105-A01-00A
|
$8.24 | ||
| 14 |
Cable, Throttle
31215-A01-020
|
$30.90 |
