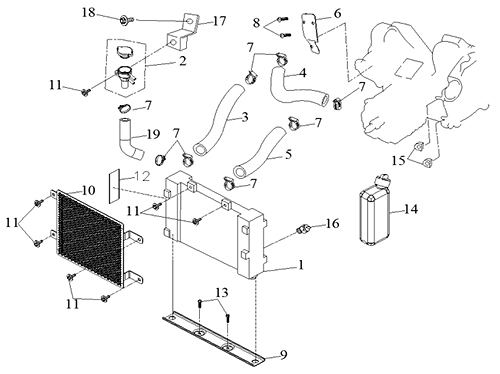

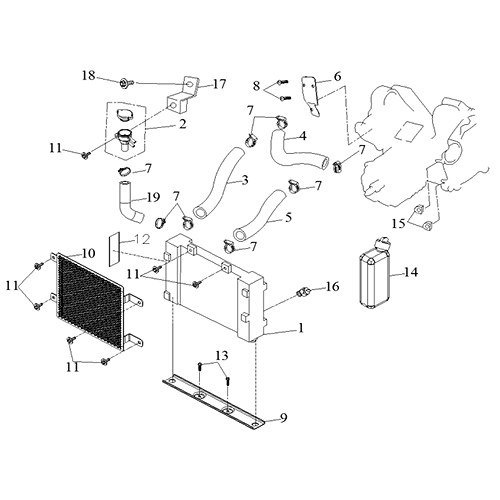

Radiator
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Bolt, Hex With O-Ring
91836-A01-201
|
$4.93 | ||
| 0 |
Hose A Liquid
15233-A02-010
|
$28.88 | ||
| 0 |
Hose C Liquid
15233-A01-030
|
$21.65 | ||
| 1 |
Radiator
15230-A03-010
|
$263.11 | ||
| 2 |
Pour Set
15229-A03-010
|
$56.11 | ||
| 4 |
Hose B, Liquid, L=240mm
15233-162424
|
$15.45 | ||
| 6 |
Cover, Dust-Proof
17211-E01-000
|
$21.23 | ||
| 7 |
Clip, 23~28
97411-230-12
|
$2.11 | ||
| 8 |
Bolt,Pan Phillips, M5x10
91740-05010B-1
|
$1.55 | ||
| 9 |
Support, Radiator
71312-A03-000
|
$15.43 | ||
| 10 |
Mesh, Radiator
15236-A03-000
|
$39.98 | ||
| 11 |
Hex Washer Face Bolt, M6x16
91700-06016-10G
|
$2.13 | ||
| 12 |
Warning Decal, Radiator, 20x90mm
72116-A01-001
|
$9.63 | ||
| 13 |
Hex. Bolt, Flange
P91750-06025-10G
|
$1.93 | ||
| 14 |
Coolant(Green)
15235-A01-040
|
$20.59 | ||
| 15 |
Grommet
17110-E01-000
|
$0.77 | ||
| 17 |
Bracket, Hose
71280-A01-000
|
$7.37 | ||
| 18 |
Hex.Washer Face Bolt, M8x16
P91700-08016-12B
|
$4.09 | ||
| 19 |
Hose, Radiator Cap
15234-A02-000
|
$12.26 |
