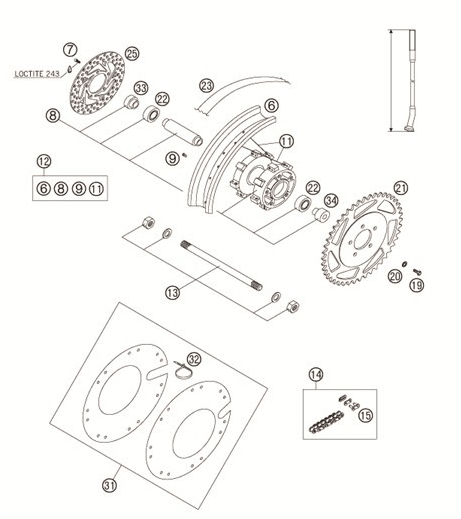

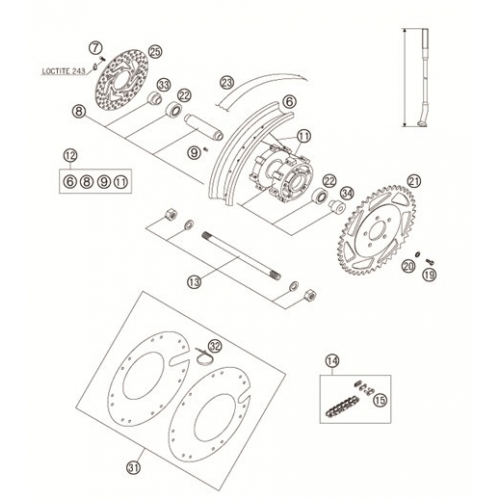

Rear Wheel & Disc
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 6 |
Rear Rim
DB-220-318
|
$54.57 | ||
| 7 |
Screw
DB-220-319
|
$1.82 | ||
| 8 |
Complete rear tire assembly
DB-220-320
|
|||
| 11 |
Spoke
DB-220-322
|
|||
| 12 |
Rear Wheel 10-10
DB-220-323
|
$138.03 | ||
| 12 |
Rear Wheel 12-14
DB-220-323-12
|
$148.73 | ||
| 13 |
Axle Rear
DB-220-324
|
$10.91 | ||
| 14 |
Chain
DB-220-325
|
$17.11 | ||
| 15 |
Connecting Link
DB-220-326
|
$1.82 | ||
| 19 |
Screw
DB-220-327
|
$1.82 | ||
| 21 |
Sprocket
DB-220-329
|
$42.79 | ||
| 22 |
Ball Bearing
DB-220-330
|
$3.64 | ||
| 25 |
Rear Brake Disc
DB-220-332
|
$63.67 | ||
| 31 |
Rear Tire 10-10
DB-220-333
|
$127.33 | ||
| 31 |
Rear Tire 12-14/12-10
DB-220-333-12
|
$191.00 | ||
| 33 |
Distance Sleeve Right
DB-220-335
|
$10.91 | ||
| 34 |
Distance Sleeve Left
DB-220-336
|
$10.91 |
