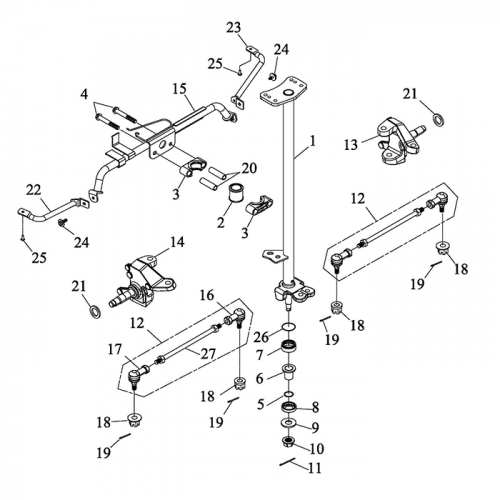

Steering | Shaft | Link
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Shaft Ass'y
52205-A03-000
|
$141.24 | ||
| 2 |
Bush, PU
93510-A03-000
|
|||
| 3 |
Shaft Holder, Steering
52120-A03-000
|
|||
| 4 |
Hex Washer Face Bolt
91700-08065-12G-1
|
|||
| 5 |
O-Ring
96200-168031
|
$1.93 | ||
| 6 |
Bush, Steering Shaft
93317-A03-000
|
$10.91 | ||
| 7 |
Dustproof Rubber
93610-A03-000
|
|||
| 8 |
Swing Arm Pivot Dust Cover Apex
93609-A01-100
|
$14.95 | ||
| 9 |
Washer,Plate
93100-12232-23G
|
|||
| 10 |
Nut, Insert Lock, M12
92130-12S-17G
|
$5.84 | ||
| 11 |
Cotter Pin, 3.2x32
94000-03032
|
$2.13 | ||
| 12 |
Link Ass'y
52300-A03-000
|
$97.58 | ||
| 13 |
Knuckle, R.
52325-A03-001
|
|||
| 14 |
Knuckle, L.
52320-A03-001
|
|||
| 15 |
Support
71250-A12-000
|
|||
| 16 |
Ball Joint, Left Thread
52310-A03-000
|
|||
| 17 |
Ball Joint, right Thread
52315-A03-000
|
$33.48 | ||
| 18 |
Cross Thread Nut, M10
92141-10-14G
|
$3.20 | ||
| 19 |
Cotter Pin - Upper A-Arm 2.5x25
94000-02525
|
$2.13 | ||
| 20 |
Spacer
93300-0814-47A
|
$3.21 |
