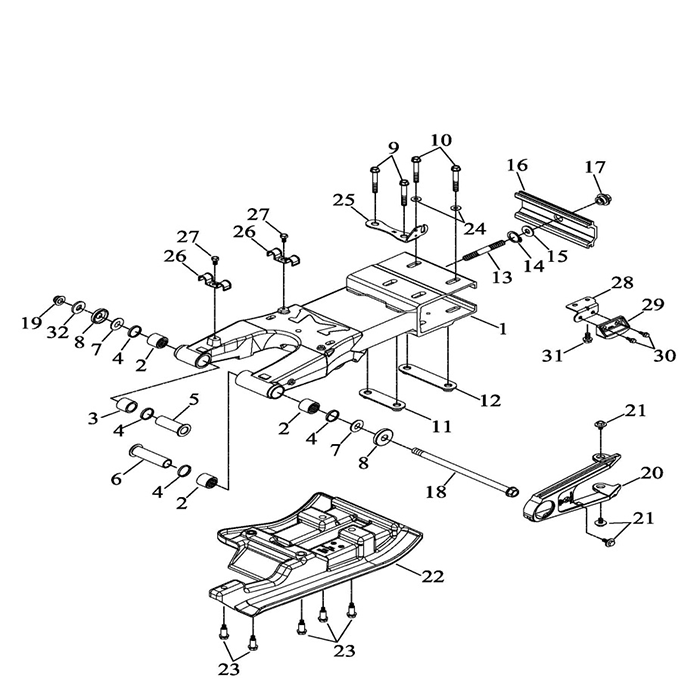

Rear Fork
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
rear fork
82105-A12-000
|
|||
| 2 |
Bearing, Needle
95200-HKH223030
|
$9.63 | ||
| 3 |
Spacer
93305-2230-15
|
$3.85 | ||
| 4 |
Seal, Oil
96100-223008
|
$2.57 | ||
| 5 |
Spacer
93316-A12-000
|
|||
| 6 |
Spacer
93316-A12-010
|
|||
| 7 |
Washer , Plate(SK5)
93107-14235-10
|
|||
| 8 |
Cover, Pivot Dust
93609-A03-000
|
$4.49 | ||
| 9 |
Hex Washer Face Bolt
91700-12120-14W-1
|
|||
| 10 |
Hex Washer Face Bolt
91700-12110-14W-1
|
|||
| 11 |
Washer, Axle Housing Set, Front
23216-A03-000
|
$7.70 | ||
| 12 |
Washer, Axle Housing Set, Rear
23216-A03-010
|
$7.70 | ||
| 13 |
Bolt,Stud
91000-12075
|
|||
| 14 |
93406-STW20
|
|||
| 15 |
Washer , Plate
93100-20028-10W-2
|
|||
| 16 |
Holder, Rear Fork, Adjuster
82110-A03-100
|
|||
| 17 |
Nut,Chain Adjuster
92205-A03-100
|
|||
| 18 |
Hex Washer Face Bolt
91700-14312-19G-1
|
|||
| 19 |
Front Sprocket/Swingarm Nut M14
92130-14S-19G
|
$7.95 | ||
| 20 |
Buffer, Chain Touch Defense
23325-A03-000
|
$13.48 |
