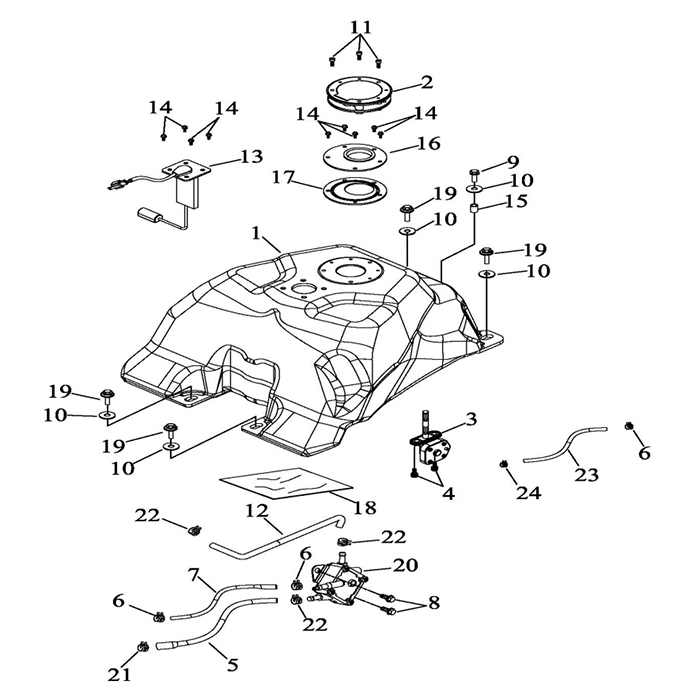

Fuel Tank
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Tank, Fuel
12100-A12-001
|
|||
| 2 |
Cap Ass'y, Fuel Tank
12150-A03-001
|
|||
| 3 |
Valve, Fuel
12105-A12-001
|
|||
| 4 |
Hex Socket Bolt
91760-06014-05G
|
|||
| 6 |
Clip
97411-095-08
|
$1.93 | ||
| 7 |
Vacuum Tube,Fuel
12313-A12-000
|
|||
| 8 |
Hex Washer Face Bolt, M6x12
91700-06012-10G
|
$2.13 | ||
| 9 |
Hex Washer Face Bolt, M6x16
91700-06016-10G
|
$2.13 | ||
| 10 |
Washer , Plate
93100-06524-16G
|
|||
| 11 |
Hex. Socket Bolt
91762-05030-04
|
|||
| 12 |
Tube, Fuel
12310-A12-011
|
|||
| 13 |
Gauge,Fuel Tank
12115-A03-003
|
|||
| 14 |
Hex Washer Face Bolt
91710-05016-08B
|
|||
| 15 |
Spacer
93300-0610-10
|
$1.93 | ||
| 16 |
Fuel Cap, Carrier
12101-A03-000
|
$5.11 | ||
| 17 |
Rubber Washer, Fuel Cap
93502-A03-001
|
$4.49 | ||
| 18 |
Heat Cushion(Front), 130X180X5t
72125-A01-000
|
$6.95 | ||
| 19 |
Hex. Bolt,Flange, Washer, M6x20
91750-06020-10G-1
|
$1.55 | ||
| 20 |
Pump Ass'y, Fuel
12106-A12-100
|
$74.89 | ||
| 21 |
Clip, 1/2"/ hp1506-120
97411-A01-000
|
$1.53 |
