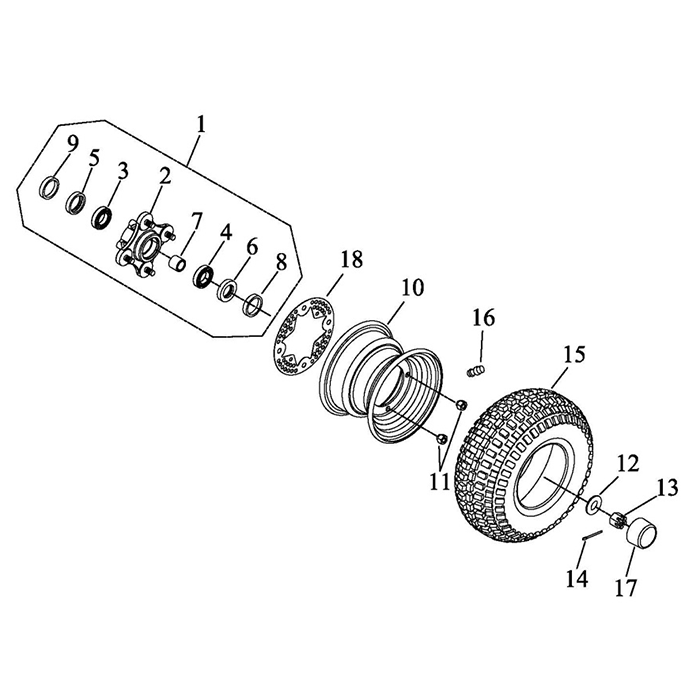

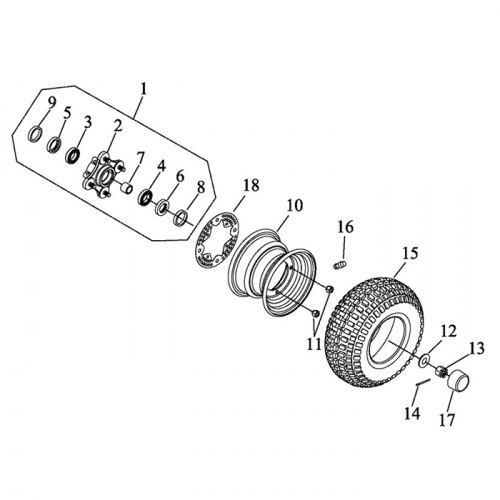

Front Wheel
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Wheel Hub Ass'y,Front
23100-A03-101
|
|||
| 2 |
Wheel Hub ,Front
23100-A03-101-1
|
|||
| 3 |
Bearing, Ball
95100-6202LU
|
$18.41 | ||
| 4 |
bearing, Ball, WITH SEALS BOTH
95100-6004LLU
|
|||
| 5 |
oil seal 2012 and up 96100-284207
96100-284207
|
$4.27 | ||
| 6 |
Seal, Oil
96100-203507
|
$3.84 | ||
| 7 |
Spacer, Inner
93325-A03-000
|
$7.69 | ||
| 8 |
Spacer, Outer
93300-1520-10
|
$7.69 | ||
| 9 |
Spacer, Outer
93300-2128-07
|
$7.69 | ||
| 10 |
Aluminum Wheel Rim Front
24205-A03-310
|
$144.45 | ||
| 11 |
Tire nut
24190-A13-020
|
|||
| 12 |
Washer, Plate, 14.5x40x4.5
93100-14540-45G
|
$2.89 | ||
| 13 |
Cross Thread Nut
92140-14-21G
|
|||
| 14 |
Cotter Pin, 3.2x32
94000-03032
|
$2.13 | ||
| 15 |
Tire, Front (Off Road)
24110-A03-030
|
$100.30 | ||
| 16 |
Valve, Tire
24106-A01-010
|
|||
| 17 |
Cap, Rubber, PK-6142
93615-A01-000
|
$7.43 | ||
| 18 |
COVER,FRONT DISK
31307-A03-000
|
