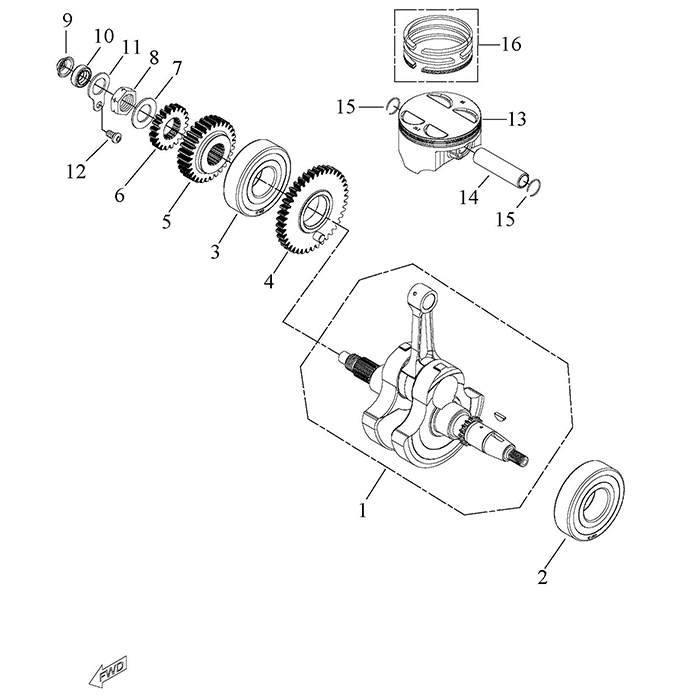

Crankshaft
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crank Shaft Ass'y
13000-E12-102
|
|||
| 2 |
bearing, Ball
95100-TMB307
|
|||
| 3 |
Bearing, Ball
95100-TMB306
|
|||
| 4 |
GEAR, Water Pump Drive
13000-E12-100-8
|
|||
| 5 |
GEAR, water pump drive
13000-E12-100-7
|
|||
| 6 |
GEAR, water pump drive
13000-E12-100-6
|
|||
| 7 |
WASHER, water pump deive gear
93106-18231-18
|
|||
| 8 |
NUT, primary drive gear
92110-18-24-1
|
|||
| 9 |
JET, crank shaft R
14210-E12-100
|
|||
| 10 |
Seal, Oil
96100-122107
|
|||
| 11 |
RETAINER, crank shaft oil seal
83121-E12-100
|
|||
| 12 |
SCREW, connecter oil pipe
91740-06010Z
|
|||
| 13 |
Piston
13300-E12-100
|
|||
| 14 |
PIN, piston
13400-E12-100
|
|||
| 15 |
CIRCLIP, piston pin
13410-E12-100
|
|||
| 16 |
RINGSET, piston
13310-E12-100
|
