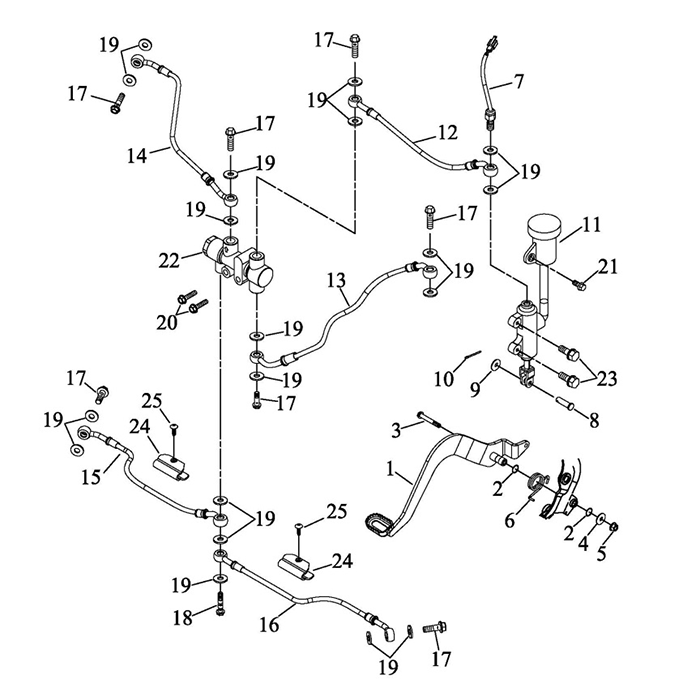

Brake Oil Tube
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Swing Arm, Foot brake
31408-A12-100
|
|||
| 2 |
O-Ring, 13.8*2.4
96200-138024
|
$1.58 | ||
| 3 |
Hex Washer Face Bolt
91700-06057-10G
|
|||
| 4 |
Washer , Plate
93100-06524-16G
|
|||
| 5 |
Nut, Insert Lock, M6
92130-06S-10G
|
$2.13 | ||
| 6 |
Return Spring
97271-A12-001
|
|||
| 7 |
Switch,Footbrake
61205-A12-000
|
|||
| 8 |
Pin
94005-07021-2
|
|||
| 9 |
Washer, Plain
93100-07013-10W-1
|
|||
| 10 |
Cotter Pin, 1.6x19
94000-01620
|
$2.13 | ||
| 11 |
Hydraulic Pump,Footbrake
31406-A08-000
|
|||
| 12 |
Hose, Footbrake Hydraulic Pump
31228-A12-100
|
|||
| 13 |
Hose, Rear Disk Brake
31225-A12-100
|
|||
| 14 |
Hand brake hose
31229-A03-110
|
|||
| 15 |
Right front brake hose
31227-A03-111
|
|||
| 16 |
Left front brake hose
31226-A03-111
|
|||
| 17 |
Bolt, Brake Hose
91830-A01-000
|
$5.79 | ||
| 18 |
Bolt, Brake Hose
91830-A03-100
|
|||
| 19 |
Washer, Copper
93101-10515-12-1
|
|||
| 20 |
Hex Washer Face Bolt, M6x16
91700-06016-10G
|
$2.13 |
