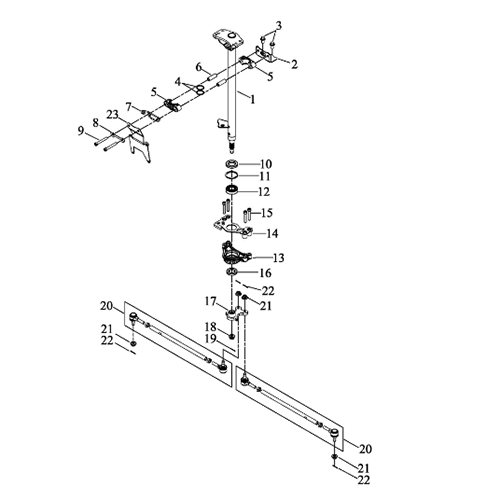

Steering Shaft | Link
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Shaft A'ssy
52205-A27-000
|
|||
| 2 |
SUPPORT,SREERING COLUMN
52206-A13-000
|
|||
| 3 |
Hex. Bolt, Flange
91710-10016-14G
|
|||
| 4 |
Oil Seal
96100-323804
|
|||
| 5 |
Shaft Holder, Steering
52120-A13-000
|
|||
| 6 |
spacer
93300-0914-42
|
|||
| 7 |
Bracket,Steering Lower
52210-A13-000
|
|||
| 8 |
Washer,Lock
52211-A13-000
|
|||
| 9 |
Hex. Bolt
91770-08060-12G
|
|||
| 10 |
Oil Seal
96100-304707
|
|||
| 11 |
Clip, Inner
93405-RTW47
|
|||
| 12 |
bearing, Ball
95100-6204LLU
|
|||
| 13 |
SUPPORT,SREERING COLUMN
52207-A13-000
|
|||
| 14 |
Bracket,Steering Lower
52121-A27-000
|
|||
| 15 |
Bolt, Hexagon, Socker
91760-08050-06G
|
|||
| 16 |
Seal, Oil
96100-274207
|
$18.49 | ||
| 17 |
ARM,PITMAN
52209-A13-001
|
|||
| 18 |
Cross Thread Nut
92141-14-21G
|
|||
| 19 |
Cotter Pin, 3.2x32
94000-03032
|
$2.13 | ||
| 20 |
Link Ass'y
52300-A13-000
|
