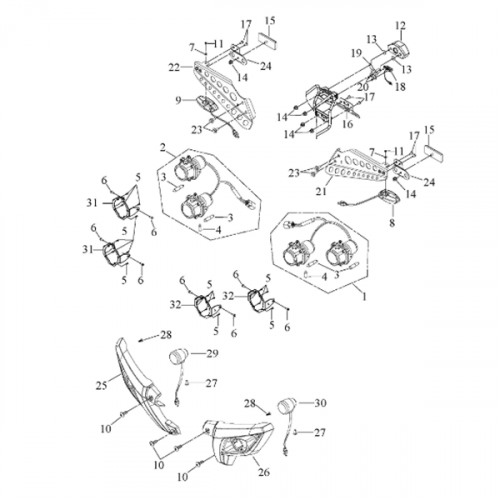

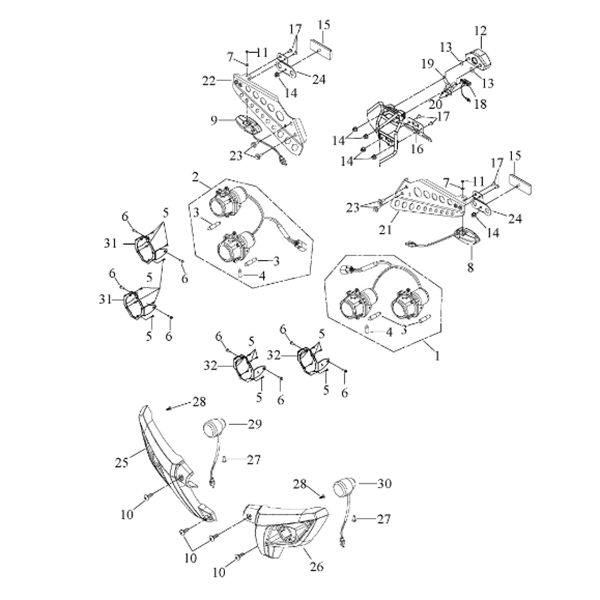

Front/Tail Light
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Lamp Comp-Left
62205-A27-001
|
|||
| 2 |
Head Lamp Comp-Right
62200-A27-001
|
|||
| 3 |
Bulb, Bright
62207-A27-000
|
|||
| 4 |
Bulb
62208-A01-000
|
|||
| 5 |
Philips Screw, Round head, Tap
91825-05012
|
|||
| 6 |
Bolt, Hex
91751-06015-10G
|
|||
| 7 |
Washer , Plate
93100-05514-10G-2
|
|||
| 8 |
Signal Light, R Front
62215-A27-000
|
|||
| 9 |
Singal Light, L. Front
62220-A27-000
|
|||
| 10 |
Bolt, Cross
91731-06015D
|
|||
| 11 |
Hex Washer Face Bolt
91710-05010-08B
|
|||
| 12 |
Tail Light Comp
62210-A27-000
|
|||
| 13 |
Washer, Rubber 20x7x3t
93502-A01-000
|
$21.39 | ||
| 14 |
Nut, Insert Lock, M6
92130-06S-10G
|
$2.13 | ||
| 15 |
Reflector, Rear
62240-A01-000
|
$6.42 | ||
| 16 |
Holder, License Plate
83131-A27-000
|
|||
| 17 |
Bolt, Cross
91731-06015S-1
|
|||
| 18 |
License Plate Lamp
62255-A27-000
|
|||
| 19 |
Holder, License Plate Light
83151-A27-000
|
|||
| 20 |
Nut, Insert Lock, Nylon
92131-04N-07G
|
