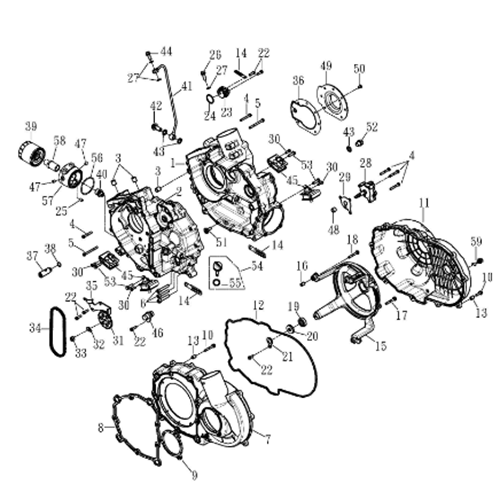

Crankcase
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankcase, R.
11100-E24-000
|
|||
| 2 |
Crankcase, L.
11200-E24-000
|
|||
| 3 |
Pin, Dowel
94001-140160
|
|||
| 4 |
Hex. Bolt, Flange
91700-06040-08G-1
|
|||
| 5 |
Hex. Bolt, Flange
91700-06065-08Z
|
|||
| 6 |
Bolt, Hexagon, Socker
91760-08045-06G-1
|
|||
| 7 |
COVER COMP, clutch
11350-E20-000
|
|||
| 8 |
O-RING, Clutch Cover
11393-E20-000
|
|||
| 9 |
O-ring 2, Transmission
11410-E20-000
|
|||
| 10 |
Hex. Bolt, Flange
91710-06028-10G
|
|||
| 11 |
COVER, clutch outer
11360-E20-000
|
|||
| 12 |
O-RING, clutch outer cover
11365-E20-000
|
|||
| 13 |
Pin, Dowel
94001-100130
|
|||
| 14 |
Hook, Fixed Wire
11115-E12-000
|
|||
| 15 |
Housing, Pin Holder
11345-E20-000
|
|||
| 16 |
Pin, Dowel, 10x14
94001-100140
|
$5.13 | ||
| 17 |
BOLT, gear shift lever
91710-06032-10G
|
|||
| 18 |
Hex. Bolt, Flange
91710-06042-10G
|
|||
| 19 |
Bearing,Ball
95100-T6201LLB
|
|||
| 20 |
Oil Seal
96100-123207
|
