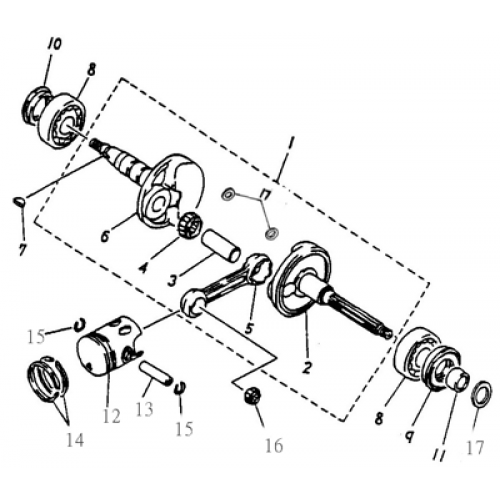

Crankshaft, Piston
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Ball Bearing, Crankshaft
95100-6204C3
|
$21.04 | ||
| 1 |
Crankshaft Ass'Y
13000-146-000
|
$147.34 | ||
| 2 |
Left Crank
13321-146-000
|
$67.09 | ||
| 3 |
Crank Pin
13381-117-000
|
$10.09 | ||
| 4 |
Needle Bearing, 18*24*12
96200-182412
|
$20.08 | ||
| 5 |
Crank Connecting Rod
13201-117-000
|
$42.79 | ||
| 6 |
Right Crank
13311-146-000
|
$67.09 | ||
| 7 |
Semicycle Key, 3*13
90471-104-000
|
$2.63 | ||
| 9 |
Oil Seal, 20*42/43*8/9
96500-20428
|
$4.39 | ||
| 10 |
Oil Seal, 20*30/33*6
96500-20306
|
$5.16 | ||
| 11 |
Left Crank Collar, 16*21*12
13316-117-000
|
$2.63 | ||
| 12 |
Piston
13100-146-000
|
$29.38 | ||
| 13 |
Piston Pin, 9*12*40
13111-117-000
|
$4.83 | ||
| 14 |
Piston Ring Set, STD 52*1.5*2.1
13011-146-000
|
$28.50 | ||
| 15 |
Clip Piston Pin, 1.0*14
13115-101-000
|
$1.55 | ||
| 16 |
Needle Bearing, 12*15*16.6
96200-121516
|
$20.08 | ||
| 17 |
Plain Washer, 18*30*1
94101-1830010
|
$2.57 | ||
| 18 |
Plain Washer, 16.5*24*0.5
94101-1624005
|
$0.64 |
