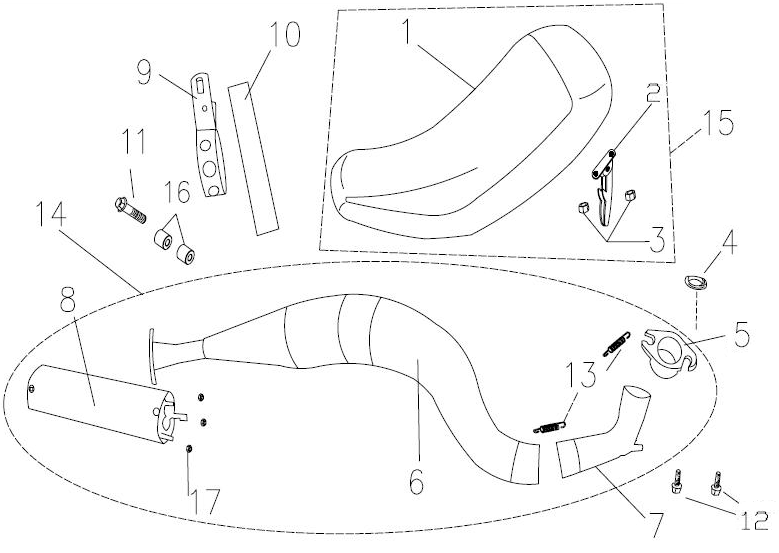

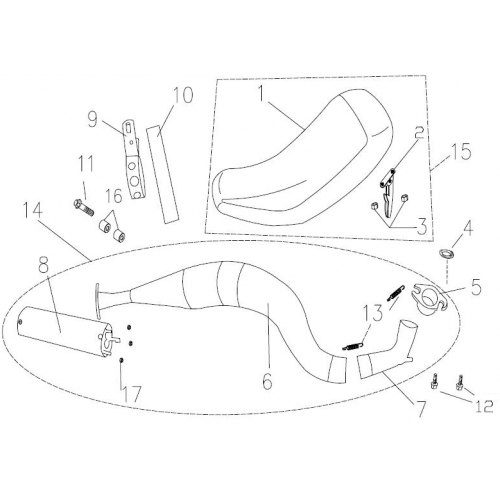

Seat & Exhaust Pipe
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat
AP77200-3AR-0EM
|
$240.70 | ||
| 2 |
Lock Ass'y Seat
AP77230-3AR-000
|
$19.21 | ||
| 3 |
Nut, Hex Flange with Serration
AP94050-06000
|
$3.16 | ||
| 4 |
Gasket, Exhaust Pipe
AP53420-3AR-000
|
$5.30 | ||
| 5 |
Connector, Head Pipe
AP53480-3AR-00A
|
$32.05 | ||
| 6 |
Exhaust Pipe
AP53400-3AR-00S
|
$453.15 | ||
| 7 |
Connector, Middle Pipe
AP53481-3AR-000
|
$42.75 | ||
| 8 |
Pipe, Tail
AP53510-3AR-000
|
$64.15 | ||
| 9 |
Clamp, Exhaust Pipe
AP52411-7A1-000
|
$16.00 | ||
| 10 |
Rubber, Exhaust Pipe
AP53412-3AR-00A
|
$6.37 | ||
| 11 |
Bolt, Hex Flange
AP95701-08055-12B
|
$3.16 | ||
| 12 |
Hex Bolt Socket
AP91000-06012-18
|
$3.16 | ||
| 13 |
Spring, Connector
AP53413-3AR-000
|
$6.37 | ||
| 14 |
Pipe Ass'y Exhaust
APA53400-3AR-00S
|
$267.49 | ||
| 16 |
Spacer, Caliper Ass'y
AP50150-0819-16B
|
$4.29 | ||
| 17 |
Nut, Hex Flange with Serration
AP94050-05000
|
$3.16 |
