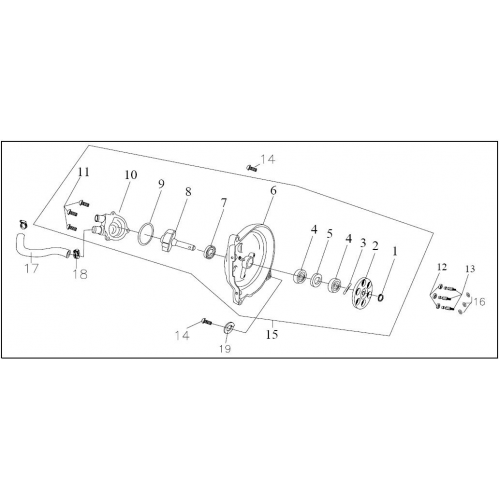

Pump Ass'y Liquid
Change Assembly
Pump Ass'y Liquid
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Water and dust proof after market stator cover
17211-E01-0LD
|
|||
| 1 |
Circlip. External
AP90601-S08
|
$4.23 | ||
| 2 |
Drive Wheel, Pump
AP15211-A2DL-000
|
$6.37 | ||
| 3 |
Pin
AP96220-030215
|
$4.23 | ||
| 4 |
Ball, Bearing
AP96100-608LLU-C3
|
$9.58 | ||
| 5 |
Collar
AP15216-A2DL-000
|
$5.30 | ||
| 6 |
Body, Pump
AP15212-A2DL-000
|
$53.45 | ||
| 7 |
Seal, Oil
AP91204-101804
|
$7.44 | ||
| 8 |
Rotor Ass'y Pump
AP15213-A2DL-000
|
$29.91 | ||
| 9 |
Ring, Oil
AP91300-525020
|
$4.23 | ||
| 10 |
Cap, Pump
AP15215-A2DL-000
|
$16.00 | ||
| 11 |
Hex Socket Bolt
AP91000-05020
|
$3.16 | ||
| 12 |
Plug, Rubber
AP31130-A2DL-000
|
$4.23 | ||
| 13 |
Bolt, Drive Wheel
AP15875-A2DL-000
|
$10.65 | ||
| 14 |
Hex, Socket Bolt
AP91000-06025
|
$3.16 | ||
| 15 |
Pump Ass'y Liquid
AP15200-A2DL-000
|
|||
| 15 |
Pump Ass'Y, Liquid
1520A-E01-00k
|
$148.29 | ||
| 16 |
Washer, Plate
AP90426-061310
|
$2.09 | ||
| 17 |
Hose B, Liquid
AP15233-162421
|
$13.90 | ||
| 18 |
Clamp, Hose
AP16411-A2DL-000
|
$3.16 |
