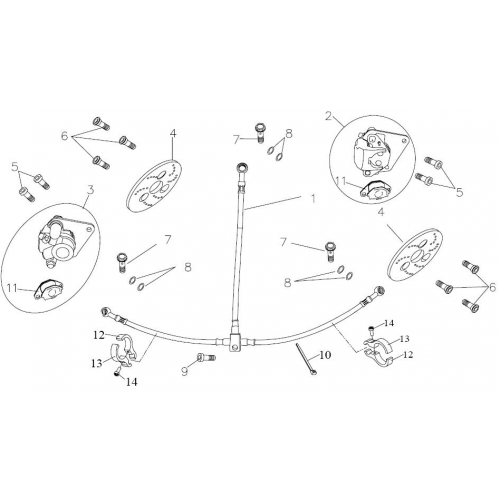

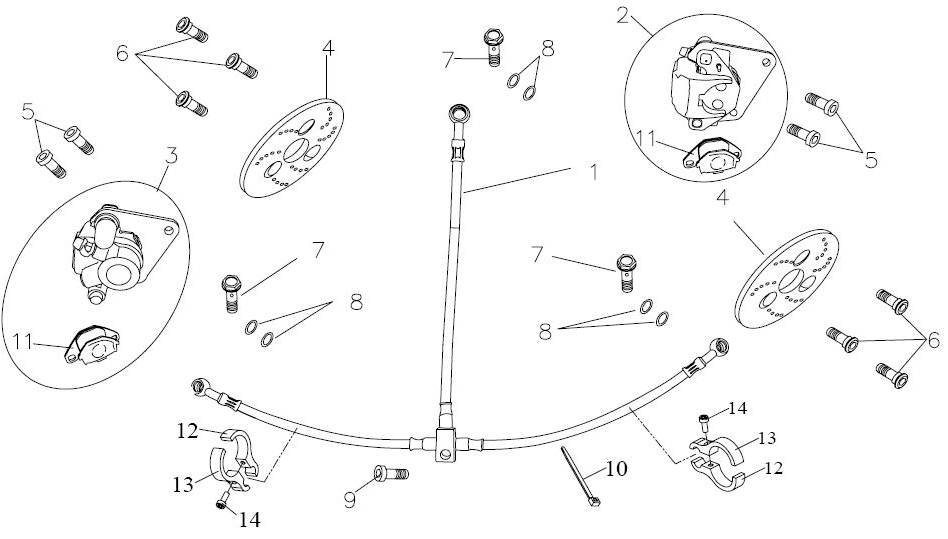

Drum Brake, Front
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Hose, Front Brake
AP47220-7A1-000
|
$85.55 | ||
| 2 |
Caliper Ass'y, Front Right
AP47230-3AR-A0A
|
$96.25 | ||
| 3 |
Caliper Ass'y, Front Left
AP47240-3AR-AA
|
$96.25 | ||
| 4 |
Disc, Front Brake
AP57210-3AR-000
|
$64.15 | ||
| 5 |
Bolt, Hex Socket
AP91000-08020-2G
|
$3.16 | ||
| 6 |
Bolt, Brake Disc
AP90105-08018-97L
|
$4.23 | ||
| 7 |
Bolt, Brake Hose
AP90145-MS9-6110-M
|
$7.44 | ||
| 8 |
Washer, Copper
AP94101-10140-CU
|
$0.75 | ||
| 9 |
Bolt, Hex Socket
AP91000-08025-2G
|
$3.16 | ||
| 10 |
Strap
AP89020-3AR-000
|
$1.02 | ||
| 11 |
Pad Kit, Rear Disc Front
AP47235-3AR-000
|
$26.54 | ||
| 12 |
Clamp-2, Cable
APTMG-910-090i-2
|
$8.99 | ||
| 13 |
Clamp-1, Cable
APTMG-710-090i-1
|
$8.99 | ||
| 14 |
Bolt, Hex Socket
AP91000-04010-03B
|
$3.16 |
