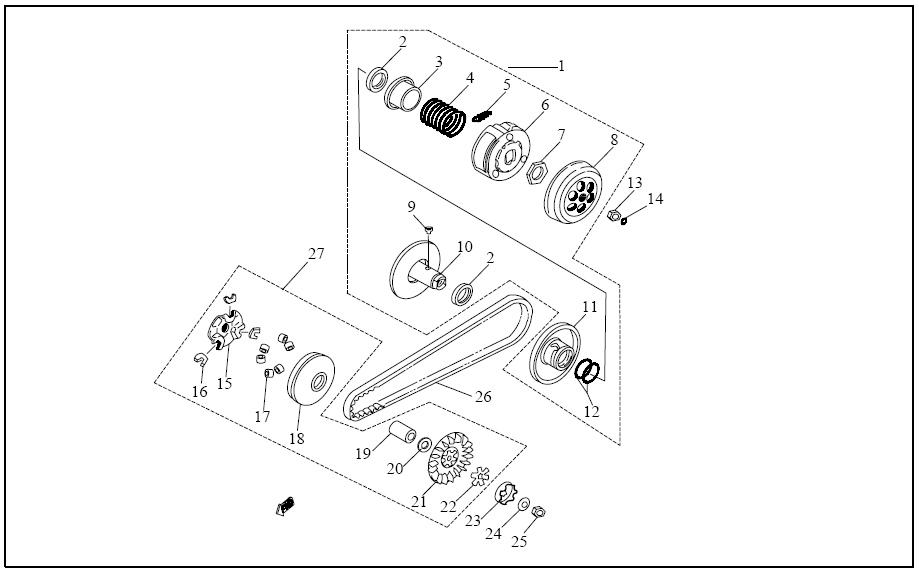

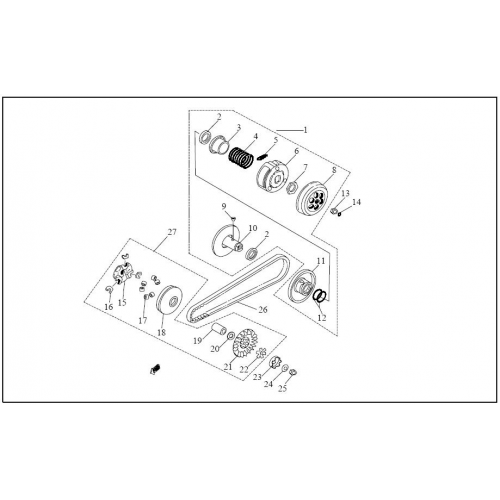

Clutch
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Secondary Sheave Ass'y
AP22300-A2C4-00A
|
$213.95 | ||
| 2 |
Seal, Oil
AP91200-33394
|
$6.37 | ||
| 3 |
Seat, Secondary Spring
AP22311-A2C4-000
|
$14.93 | ||
| 4 |
Spring, Compression
AP22312-AC4-1500
|
$16.00 | ||
| 5 |
Spring, Clutch Weight
AP22331-JOG-2000
|
$16.00 | ||
| 6 |
Carrier Ass'y, Clutch
AP22330-A2C4-00B
|
$96.25 | ||
| 7 |
Nut, Clutch
AP22332-A2C4-000
|
$5.30 | ||
| 8 |
House, Clutch
AP22340-A2C4-000
|
$53.45 | ||
| 9 |
Bearing, Ball
AP22313-A2C4-000
|
$2.47 | ||
| 10 |
Fix Sheave Comp. Secondary
AP22310-A2C4-000
|
$85.55 | ||
| 11 |
Sliding Sheave, Secondary
AP22320-A2C4-000
|
$60.94 | ||
| 12 |
Oil-Ring
AP91300-360020
|
$5.30 | ||
| 13 |
Hex Acorn Nut
AP22341-10100
|
$6.37 | ||
| 14 |
O-Ring
AP91300-125030
|
$5.30 | ||
| 15 |
Plate, Cam
AP22411-A2C4-000
|
$10.65 | ||
| 16 |
Slider, Cam Plate
AP22412-A2C4-000
|
$4.23 | ||
| 17 |
Weight
AP22413-A2C4-055
|
$16.00 | ||
| 18 |
Sliding Sheave, Primary
AP22410-A2C4-00A
|
$53.45 | ||
| 19 |
Collar
AP22414-A2C4-000
|
$13.86 | ||
| 20 |
Sliding Sheave Washer, Clam
AP22415-A2DL-000
|
$8.51 |
