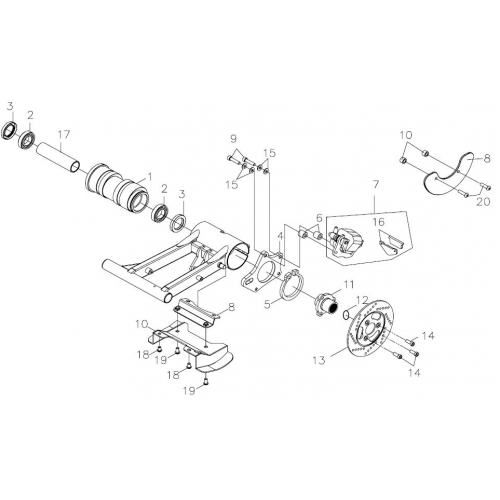

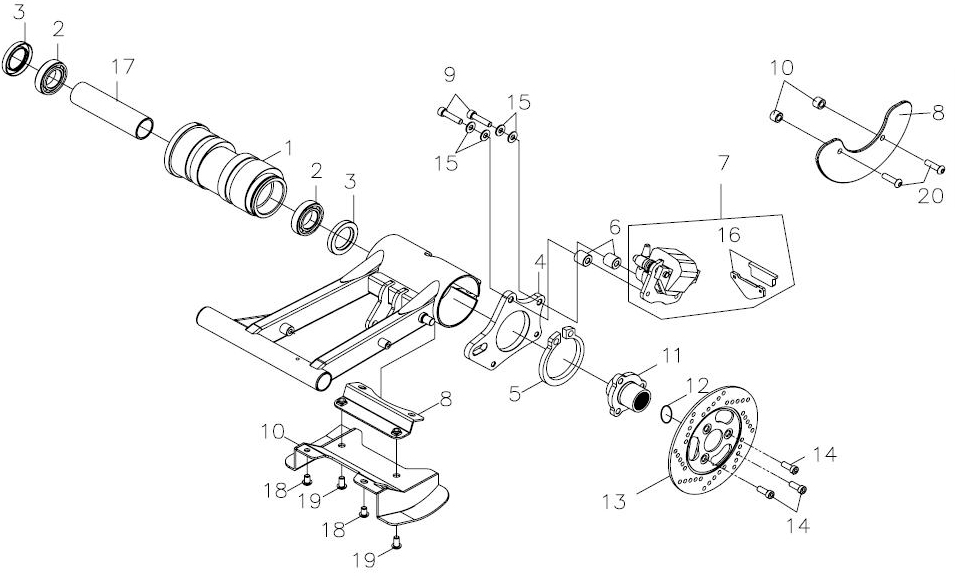

Bearing Housing Rear Disc Brake
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Housing, Rear Axle Bearing
AP42636-7A1-000
|
|||
| 2 |
Bearing, Ball
AP96140-6006ZZ
|
$16.00 | ||
| 3 |
Seal, Oil
AP91258-355508
|
$13.38 | ||
| 4 |
Bracket, Caliper
AP45290-7A1-00A
|
$42.75 | ||
| 5 |
Clip, Cir
AP94510-STW-68
|
$4.23 | ||
| 6 |
Spacer, Caliper Ass'y
AP50150-0819-16B
|
$4.29 | ||
| 7 |
Caliper Ass'y, Rear Brake
AP45250-7A1-A00-RE
|
$96.25 | ||
| 8 |
Protector, Brake Disc
AP45122-7A1-00A-01
|
$26.54 | ||
| 8 |
Stay, Swing Arm Skid Plate (Option)
AP52206-7A1-000
|
$18.30 | ||
| 9 |
Bolt, Hex. Socket
AP91000-08035-06G
|
$3.16 | ||
| 10 |
Skid Plate, Swing Arm (Option)
AP52205-7A1-000
|
$214.05 | ||
| 10 |
Spacer R, Master Cylinder
AP50150-0816-12B
|
$26.54 | ||
| 11 |
Bracket, Rear Brake Disc
AP42625-3AR-000
|
$52.38 | ||
| 12 |
Ring, Axle
AP42340-3AR-000
|
$7.44 | ||
| 13 |
Disc, Rear Brake
AP45121-3AR-000
|
$74.85 | ||
| 14 |
Bolt, Hex Socket
AP91000-10014-97K
|
$4.23 | ||
| 15 |
Washer, Plate
AP90426-081816
|
$2.09 | ||
| 16 |
Pad Kit, Rear Disc Brake
AP47235-3AR-000
|
$32.05 | ||
| 17 |
Spacer
AP90150-3136-136B
|
$10.65 | ||
| 18 |
Hex Socket Bolt (Option)
AP91001-08012-05B
|
$0.74 |
