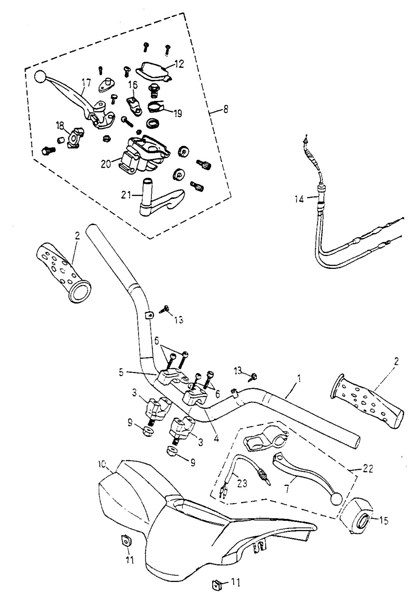

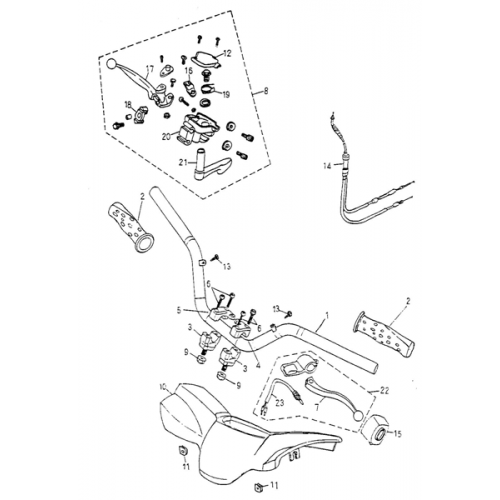

Handlebar
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Scooter Throttle cable
17910-116-000
|
$23.49 | ||
| 1 |
Handle Bar
53100-145-000
|
$41.66 | ||
| 2 |
Handle Grip
53166-155-000
|
$12.36 | ||
| 3 |
Handle Bar Bottom Clamp
53101-145-000
|
$12.28 | ||
| 4 |
Left Handle Bar Clamp
53102-145-000
|
$6.14 | ||
| 5 |
Right Handle Bar Clamp
53103-145-000
|
$6.14 | ||
| 6 |
Hex Socket Bolt , 6*25
91000-06025
|
$1.32 | ||
| 7 |
Left Lever
53178-145-000
|
$39.91 | ||
| 8 |
Right Lever Ass'Y
53170-155-000
|
$67.53 | ||
| 9 |
Nylon Nut , 10mm*1.25
90350-10000G
|
$2.19 | ||
| 10 |
Front Handle Bar Cover
64211-155-000
|
$31.58 | ||
| 11 |
U Plate Nut , 5mm
90344-05000
|
$1.40 | ||
| 12 |
Lever Body Cover (Adly)
53171-155-000
|
$10.09 | ||
| 13 |
Tapping Screw Truss Head Phillips , 5*16
93903-05016
|
$1.32 | ||
| 14 |
Throttle Cable
17910-145-000
|
$21.49 | ||
| 15 |
L. Handle Switch Ass'Y
35200-145-001
|
$61.40 | ||
| 16 |
Throttle Cable Bracket
53174-155-000
|
$5.70 | ||
| 17 |
Right Lever
53175-155-000
|
$17.10 | ||
| 18 |
Cable Bracket
53173-145-000
|
$7.46 | ||
| 19 |
Throttle Lever Spring
53184-155-000
|
$1.32 |
