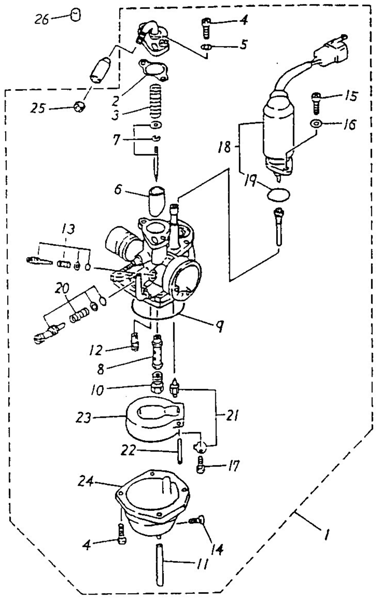

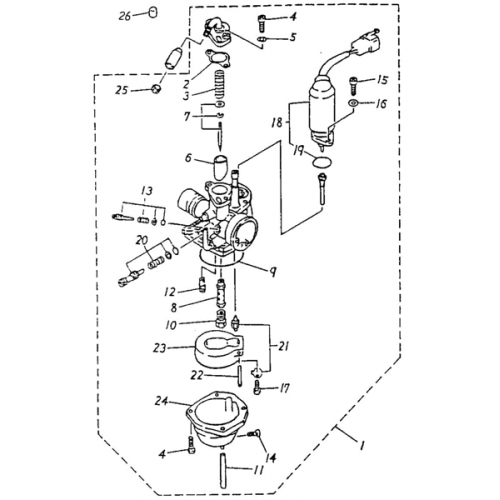

Carburetor
Change Assembly
# | Product Name | Req'd | Price: | |
---|---|---|---|---|
1 |
Carburator only no choke assembly
16100-117-00A
|
$131.56 | ||
2 |
Carburetor Gasket
16101-116-000
|
$2.19 | ||
3 |
Throttle Valve Spring
16102-116-000
|
$2.19 | ||
4 |
Pan Phillips Bolt, 4*14
93500-04014
|
$1.32 | ||
5 |
Spring Washer, 4*7*1
94111-0407010
|
$0.88 | ||
6 |
Throttle Valve
16103-116-000
|
$18.41 | ||
7 |
Needle Set
16104-117-000
|
$10.43 | ||
8 |
Needle Nozzle
16105-117-000
|
$9.21 | ||
9 |
Float Chamber Seal
16106-116-000
|
$8.34 | ||
10 |
Main Nozzle, #77.5
16108-117-000
|
$11.84 | ||
11 |
Over Flow Tube, 4*7
16109-116-000
|
$1.32 | ||
12 |
Pilot Jet, #17.5
16110-116-000
|
$9.21 | ||
13 |
Air Adjust Screw Set
16115-116-000
|
|||
14 |
Drain Plug
16111-116-000
|
$2.63 | ||
15 |
Pan Phillips Bolt, 4*8
93500-04008
|
|||
16 |
Spring Washer, 4*6.5*1
94111-0406510
|
|||
17 |
Pan Phillips Bolt, 3*6
93500-03008
|
$1.32 | ||
18 |
Plunger Starter
17215-116-000
|
$119.72 | ||
19 |
Oil Ring, 14*1.5
91314-116-000
|
$2.63 | ||
20 |
Throttle Screw Set
16114-116-000
|
$3.95 |
