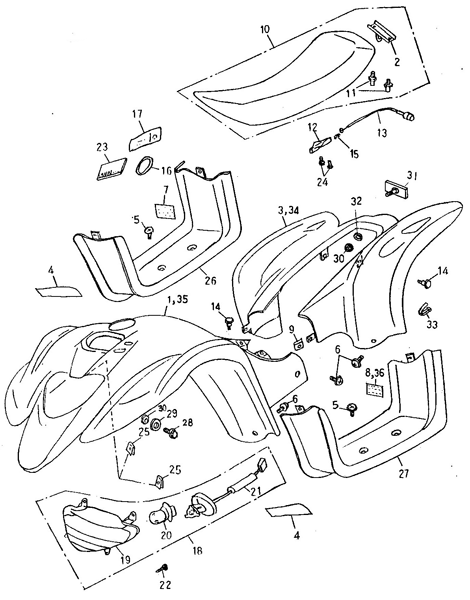

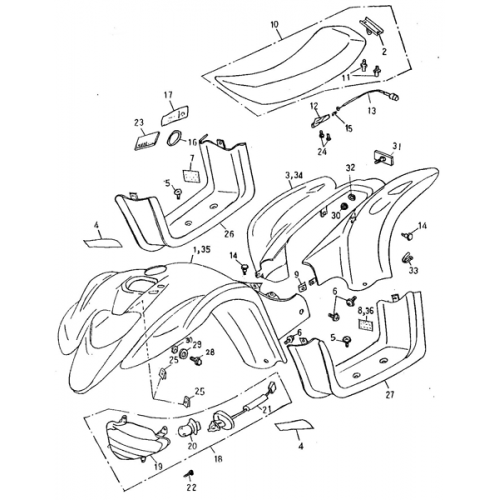

Body Cover, Seat
Change Assembly
# | Product Name | Req'd | Price: | |
---|---|---|---|---|
1 |
Front Cover
64301-155-000
|
|||
2 |
Seat Bracket
77201-145-000
|
$22.36 | ||
3 |
Rear Cover
83400-155-001
|
$127.33 | ||
4 |
Sticker (Set)
87700-155-000
|
$4.27 | ||
5 |
Pan Flat Head Phillips Bolt , 6*15
93701-06015S
|
$1.32 | ||
6 |
Pan Phillps Bolt , 6*20
93800-06020S
|
$1.32 | ||
7 |
Sticker, Warning(Y-16) , Y-16
87705-156-000
|
$5.34 | ||
8 |
Sticker, Warning
87704-155-000
|
$4.27 | ||
9 |
U Plate Nut , 6mm
90344-0600A
|
$2.19 | ||
10 |
Seat Ass'Y
77200-145-000
|
$110.51 | ||
11 |
Seat Bolt
77203-145-000
|
$3.07 | ||
12 |
Seat Lock Ass'Y
77230-145-000
|
$7.46 | ||
13 |
Seat Release Cable
77212-145-000
|
$10.09 | ||
14 |
Ladder Bolt , 6*14*2.5
90111-06014-18G
|
$1.75 | ||
15 |
Reset Spring , φ1*25
77213-145-000
|
$2.19 | ||
16 |
Rubber Strip , 50.1*5.3
91350-145-000
|
$2.19 | ||
17 |
Tool Bag
50120-101-000
|
$8.34 | ||
18 |
Head Light Ass'Y (E-Mark)
33100-125-00A
|
$84.20 | ||
19 |
Head Light Cover (E-Mark)
33110-125-00A
|
$37.24 | ||
20 |
Head Light Bulb (E-Mark) , 12V35W35W
34901-110-00A
|
$29.82 |
