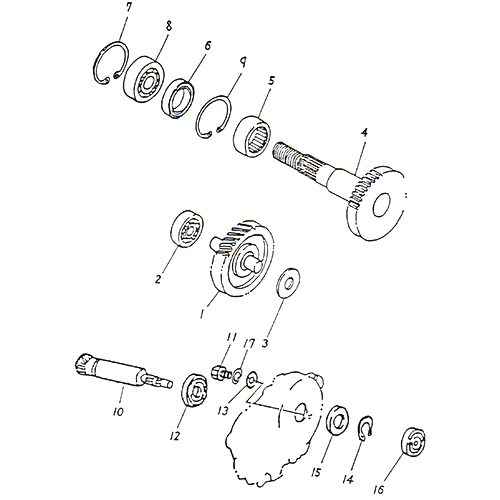

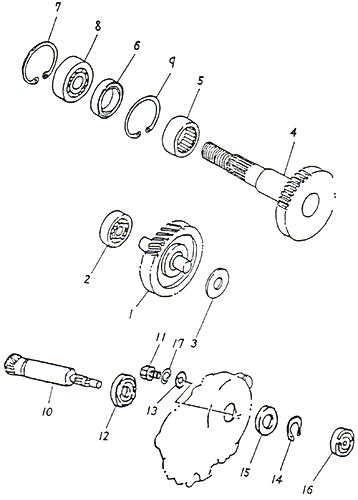

Transmission
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 | Bearing, Ball | $8.20 | ||
| 0 | Bearing, Ball | $20.22 | ||
| 0 | Bearing, Ball | $19.66 | ||
| 0 | Bearing,Ball, 6003 | $16.85 | ||
| 1 | Main Axle Comp, 48/12T | $81.97 | ||
| 3 | Plain Washer , 12.2*29*1.6 | $1.23 | ||
| 4 | Drive Axle, 36T | $85.25 | ||
| 5 | Needle Bearing , HMK2515 | $38.11 | ||
| 6 | Oil Seal , 25*35*6 | $2.40 | ||
| 7 | Internal Cir Clip , RTW-43 | $8.20 | ||
| 9 | Internal Cir Clip , RTW-34 | $1.23 | ||
| 10 | Primary Drive Gear, 13T | $51.64 | ||
| 11 | Hex Bolt , 6*10 | $1.45 | ||
| 13 | Plain Washer , 6*20*0.5 | $1.23 | ||
| 14 | External Circlip , STW-17 | $2.87 | ||
| 15 | Oil Seal , 17*28*5.5 | $5.74 | ||
| 17 | Spring Washer , 6*12*1.5 | $1.23 |
