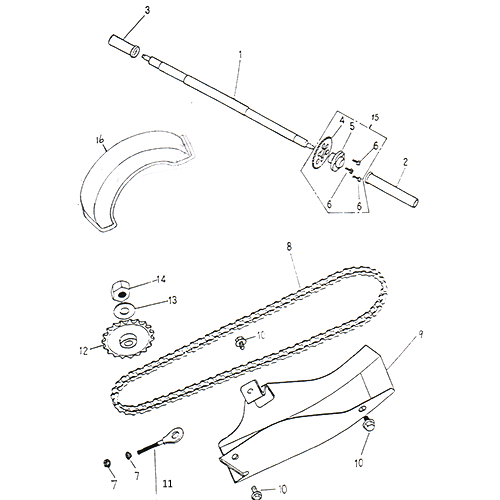

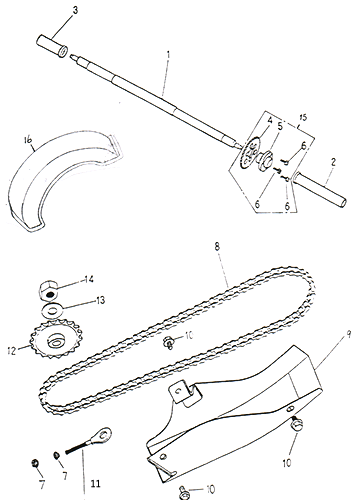

Rear Wheel Axle, Chain
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Wheel Axle
42301-145-000
|
$141.21 | ||
| 2 |
Right Spacer Collar
42620-145-000
|
$14.03 | ||
| 3 |
Left Spacer Collar
42622-145-000
|
$14.03 | ||
| 4 |
Rear Sprocket, 28T
41201-145-000
|
$33.77 | ||
| 5 |
Final Drive Flange
42610-145-000
|
$34.21 | ||
| 6 |
Hex Washer Face Bolt, 8*20
96000-08020-12G
|
$3.07 | ||
| 7 |
Hex Flange Nut With Serration , 6mm
94050-06000
|
$1.32 | ||
| 8 |
Drive Chain, 428*76
40530-145-000
|
$21.92 | ||
| 9 |
Chain Protect Cover
40510-145-001
|
$36.05 | ||
| 10 |
Hex Washer Face Bolt , 8*12
96000-08012-12G
|
$2.19 | ||
| 11 |
Drive Chain Adjuster
40543-145-000
|
$17.10 | ||
| 12 |
Drive Sprocket Ass'Y , 19T
23801-145-000
|
$29.80 | ||
| 13 |
Plain Washer , 15*29*3
94101-1529030
|
$1.32 | ||
| 14 |
Nylon Nut , 14mm
90350-14000
|
|||
| 15 |
Plain Washer, 6*14*2
94101-0614020
|
$0.45 | ||
| 16 |
Rear Chain Cover
40511-152-000
|
$26.31 |
