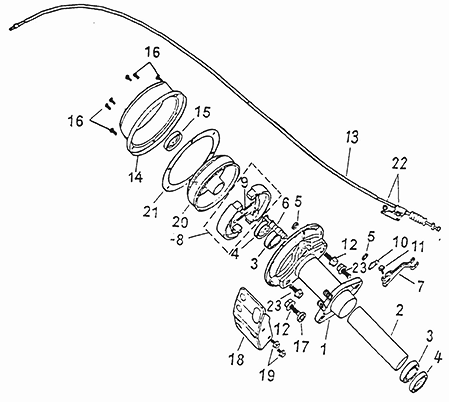

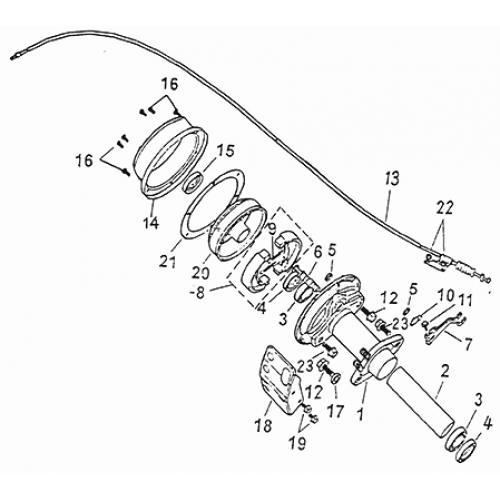

Rear Brake
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 | Bearing, 6006ZZ | $19.02 | ||
| 0 | Nut, Insert Lock, M8 | $3.12 | ||
| 0 | Oil Seal, 35x55x11 | $12.50 | ||
| 1 | Rear Brake Panel | $101.07 | ||
| 2 | Rear Brake Panel Spacer | $8.61 | ||
| 5 | Oil Seal , 14*20*4 | $4.10 | ||
| 6 | Rear Brake Cam Shaft | $9.43 | ||
| 7 | Rear Brake Arm | $8.20 | ||
| 8 | Rear Brake Shoe Comp. | $24.51 | ||
| 9 | Shoe Strain Spring , 1.6*36 | $4.10 | ||
| 10 | Return Spring | $1.23 | ||
| 11 | Hex Washer Face Bolt, 6*30 | $0.96 | ||
| 12 | Hex Washer Face Bolt , 12*27 | $3.37 | ||
| 13 | Rear Brake Cable | $49.99 | ||
| 14 | Rear Drum Cover | $45.90 | ||
| 15 | Oil Seal , 32*52*11 | $4.10 | ||
| 16 | Hex Washer Face Bolt , 6*12 | $2.87 | ||
| 17 | Plain Washer , 12*25*5 | $2.05 | ||
| 18 | Rear Brake Cover | $11.07 | ||
| 19 | Hex Washer Face Bolt , 8*12 | $2.05 |
