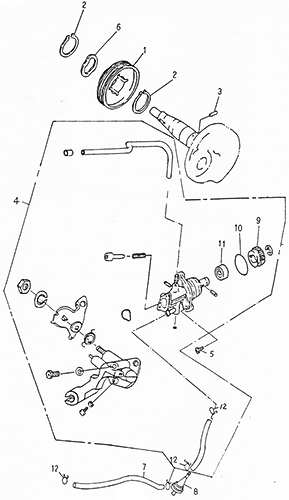

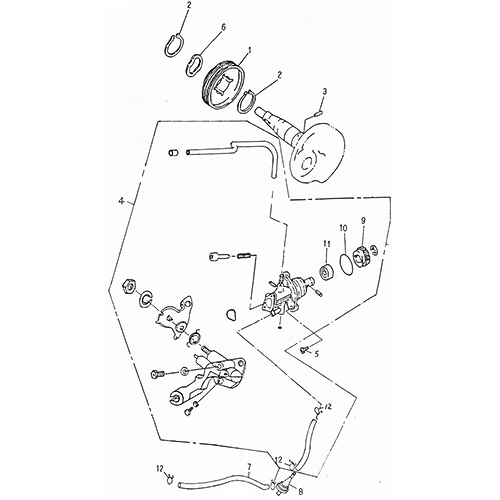

Oil Pump
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 | Pump Drive Gear | $3.69 | ||
| 2 | External Cir Clip, STW-19 | $2.87 | ||
| 3 | Crank Shaft Pin, 3*11.8 | $0.82 | ||
| 4 | Oil Pump | $92.40 | ||
| 5 | Pan Phillips Bolt, 5*15 | $1.23 | ||
| 6 | Wave Washer, 19.2*26*0.3 | $1.23 | ||
| 7 | Tube, 4.8*8*490 | $4.92 | ||
| 8 | Oil Filter Cup | $2.87 | ||
| 9 | Oil Pump Worm Wheel, 40T | $9.43 | ||
| 10 | Oil Ring, 19.3*1.6 | $4.92 | ||
| 11 | Oil Seal, 9.5*16*4 | $4.51 | ||
| 12 | Clip , 8*0.8 | $0.75 |
