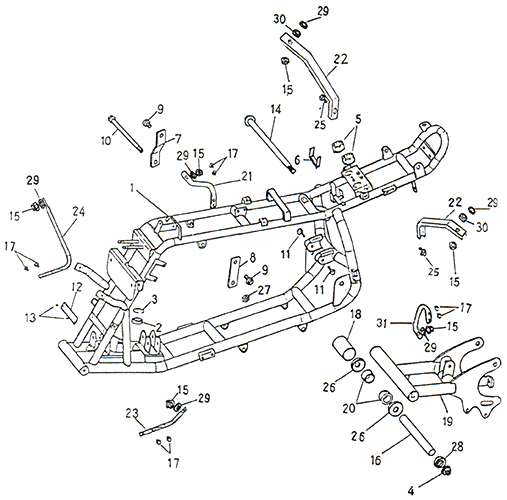

Frame Body
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Hex Washer Face Bolt M14x290
91700-14290-19G-1
|
$26.74 | ||
| 1 |
Frame Comp
50100-145-00E
|
$417.47 | ||
| 2 |
Radial Ball Bearing , 6002ZZ
96100-6002ZZ
|
$17.21 | ||
| 3 |
Internal Cir Clip , RTW-32
93405-RTW32
|
$3.07 | ||
| 4 |
Nylon Nut , 14mm
90350-14000
|
|||
| 5 |
Rubber
77211-145-000
|
$2.19 | ||
| 6 |
Sponge Pad , 15*100*4
17505-145-000
|
$3.07 | ||
| 7 |
R. Engine Fixed Plate
50353-145-001
|
|||
| 8 |
L. Engine Fixed Plate
50354-145-001
|
|||
| 9 |
Hex Washer Face Bolt , 10*20
96000-10020-14G
|
$3.07 | ||
| 10 |
Hex Washer Face Bolt , 10*208
96000-10208-14
|
$1.28 | ||
| 11 |
Hex Washer Face Bolt , 8*36
96000-08036-12G
|
$4.83 | ||
| 12 |
Frame No. Plate
50110-145-000
|
$9.21 | ||
| 13 |
Rivet , #4-3
90662-105-000
|
$1.32 | ||
| 15 |
Nylon Nut , 6mm
90350-06000
|
$5.16 | ||
| 16 |
Swing Arm Spacer , 14*20*253
52104-145-000
|
$14.91 | ||
| 17 |
Hex Bolt , 6*14
92000-06014-10
|
$4.39 | ||
| 18 |
Rubber Sleeve
52101-145-000
|
$2.63 | ||
| 19 |
Swing Arm Sub Ass'Y
52100-145-002
|
|||
| 20 |
Bush
52103-145-000
|
$9.62 |
