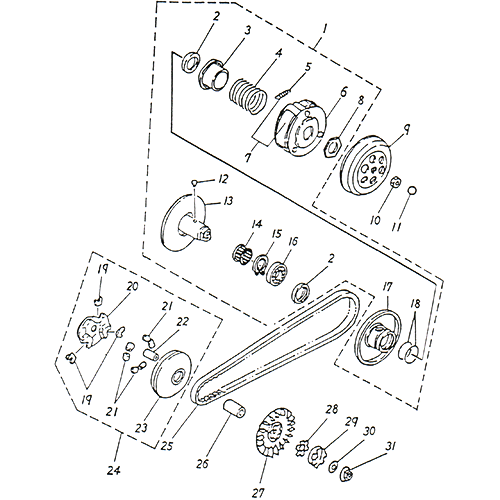

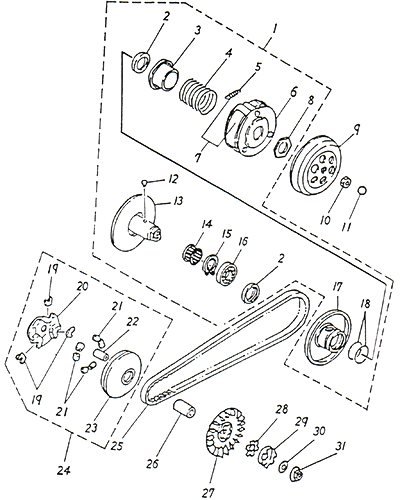

Clutch

Change Assembly

Clutch
# Product Name Req'd Price:
1 Drive Face Ass'Y, B $118.80
2 Oil Seal , 33*39*4 $6.15
3 Secondary Spring Seat $4.51
4 Compression Spring $7.79
5 Clutch Weight Spring $8.20
6 Clutch Carrier $48.77
7 Clutch Weight Set $58.61
8 Nut , 28*38*4 $4.51
9 Clutch Cover Comp $63.54
10 Hex. Acorn Nut, M10xP1.25 $1.45
10 Hex. thin clutch Nut, M10xP1.0x19 $5.76
11 Oil Ring , 12.5*3 $2.89
12 Guide Pin $1.64
13 Secondary Fix Slot Wheel $80.33
14 Needle Bearing , HKS-17*25*18 $19.26
15 Internal Cir Clip , IRTW-24 $1.08
16 Radial Ball Bearing , 6901LU $25.77
17 Secondary Sliding Slot Wheel $61.89
18 Oil Ring , 36*2 $2.46
19 Cam Plate Slider $1.23
Showing 1 to 20 of 31 (2 Pages)
