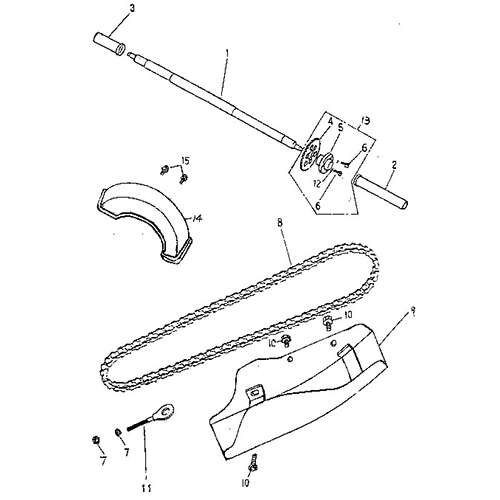

Rear Wheel, Axle, Chain
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Wheel Axle
42301-152-000
|
$159.62 | ||
| 2 |
Right Spacer Collar
42620-152-001
|
$14.03 | ||
| 3 |
Left Spacer Collar
42622-152-001
|
$14.03 | ||
| 4 |
Rear Sprocket, 50T
41201-152-001
|
$33.77 | ||
| 5 |
Final Drive Flange
42610-152-000
|
$37.24 | ||
| 6 |
Hex Washer Face Bolt , 10*20
96000-10020-14
|
$3.61 | ||
| 7 |
Hex Flange Nut With Serration , 6mm
94050-06000
|
$1.32 | ||
| 8 |
Drive Chain, 428*90
40530-152-000
|
$34.65 | ||
| 9 |
Chain Protect Cover
40510-152-000
|
$37.24 | ||
| 10 |
Hex Washer Face Bolt , 8*12
96000-08012-12G
|
$2.19 | ||
| 11 |
Drive Chain Adjuster
40543-145-000
|
$17.10 | ||
| 12 |
Spring Washer, 10*22*3
94111-1022030
|
$1.32 | ||
| 13 |
Rear Sprocket Ass'Y, 50T
42600-152-001
|
$66.66 | ||
| 14 |
Rear Chain Cover
40511-152-000
|
$26.31 | ||
| 15 |
Hex Washer Face Bolt , 6*12
96000-06012-10G
|
$3.07 |
