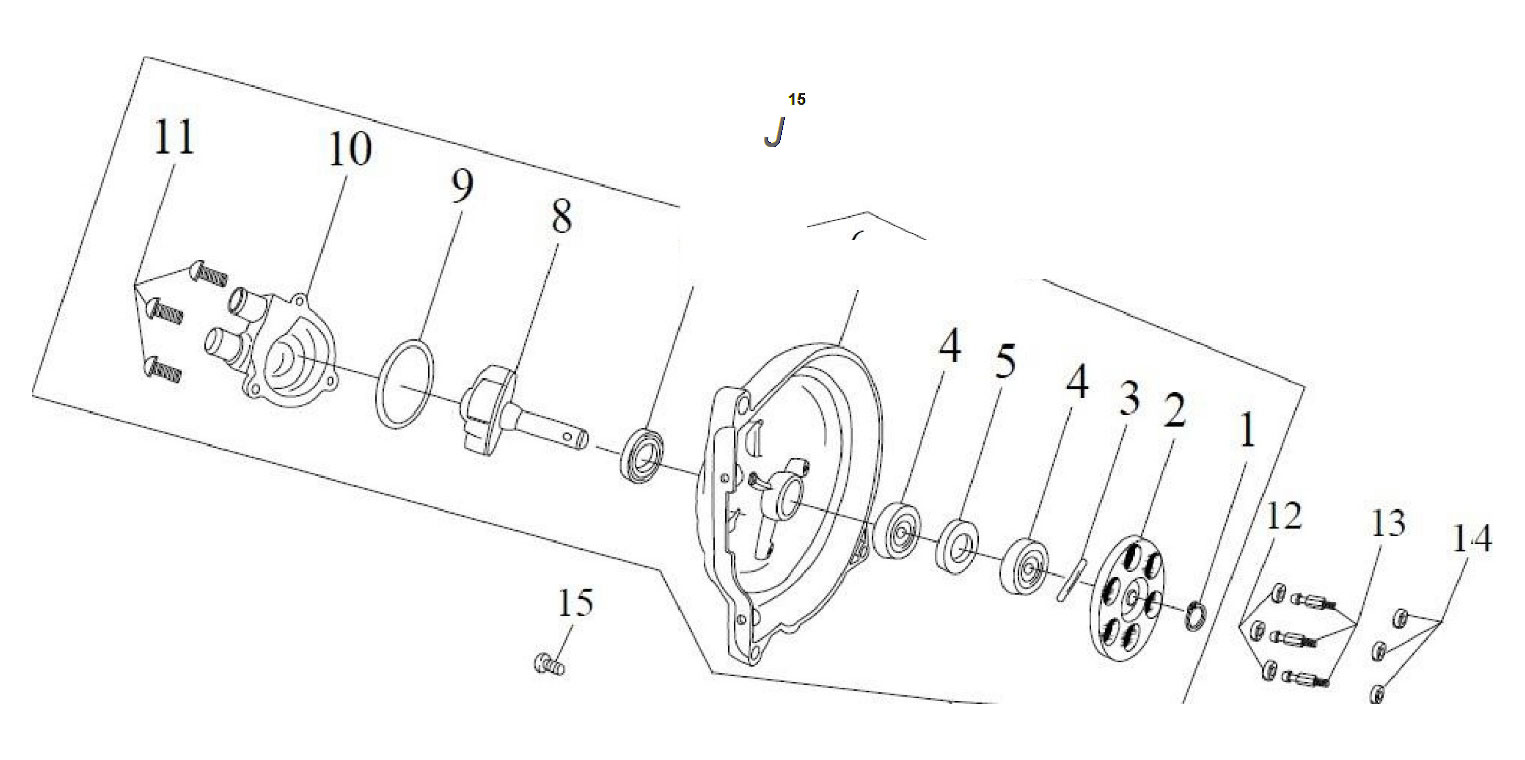

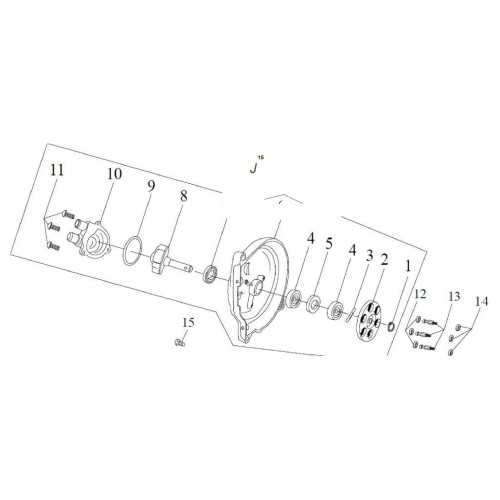

Pump Assy Liquid
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cir Clip, STW-08
93406-STW08A
|
$1.75 | ||
| 2 |
Pump Driver Wheel
15211-E01-000
|
$19.95 | ||
| 3 |
Pin, Dowel, 3x19.8
94002-030198
|
$1.55 | ||
| 4 |
Bearing, Ball, 608LLU
95100-T608LLU
|
$12.26 | ||
| 5 |
Collar, 17.5x21.7x4.5
15216-E01-000
|
$4.02 | ||
| 6 |
Body Pump
DK50C-161110-00000
|
|||
| 7 |
Seal, Oil, 10x18x4
96100-101804
|
$5.34 | ||
| 8 |
Propeller, Water Pump
15213-E01-001
|
$20.59 | ||
| 9 |
Oil-Ring, 52.5x2.0
96200-525020
|
$1.37 | ||
| 10 |
Cap, Water Pump
15215-E01-000
|
$24.71 | ||
| 11 |
Bolt, Pan, Crosshead
P91740-05016W
|
|||
| 12 |
Rubber water pump grommets or drivers only by the pc
31130-E01-000
|
$3.20 | ||
| 13 |
Bolt, Driver
15875-E01-000
|
$8.95 | ||
| 14 |
Washer, Plain
P93100-06013-01W
|
|||
| 15 |
Hex. Socket Bolt, M6x20
P91760-06020-05W
|
$2.13 | ||
| 16 |
Pump Ass'y, Liquid
DK50C-114000-00000
|
