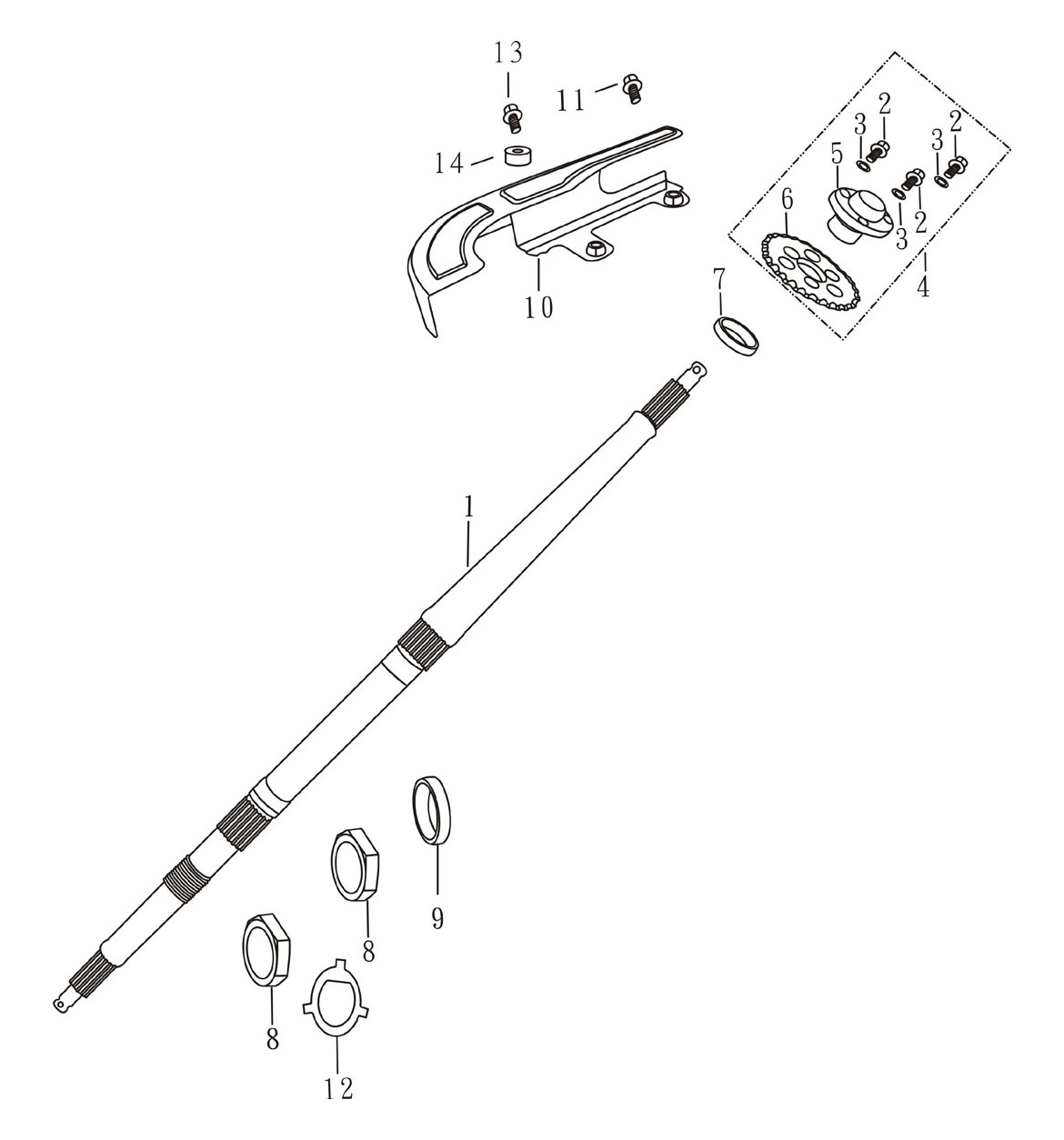

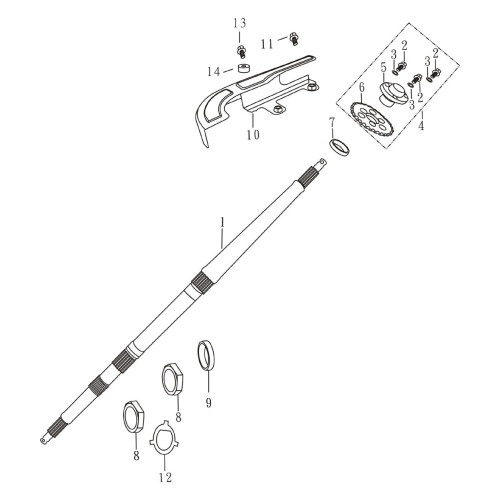

Rear Wheel Axle
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
REAR WHEEL AXLE (24T)
A10S-545110-N0000
|
|||
| 3 |
SPPING WASHER 8MM
94111-08145-33
|
|||
| 4 |
SPROCKET ASSY.428-35T
A10S-269200-N0000
|
|||
| 5 |
SPROCKET HOLDER
A10S-269550-N0000
|
|||
| 6 |
SPROCKET
A1C-26930-00-00
|
|||
| 7 |
COLLAR
A1A-26956-00-00
|
|||
| 8 |
CASTLE NUT 28MM
A1A-54524-00-00
|
|||
| 9 |
COLLAR
A1A-54523-00-00
|
|||
| 10 |
CHAIN CASE,2
A10S-269510-N0000
|
|||
| 11 |
FLANGE BOLT M8X14
95800-08014-02
|
|||
| 12 |
WASHER
A1A-54537-00-00
|
|||
| 13 |
FLANGE BOLT 8X20
95800-08020-02
|
|||
| 14 |
COLLAR
M1A-29012-00-01
|
