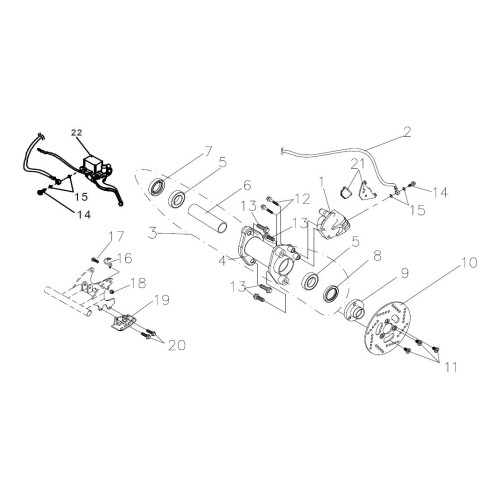

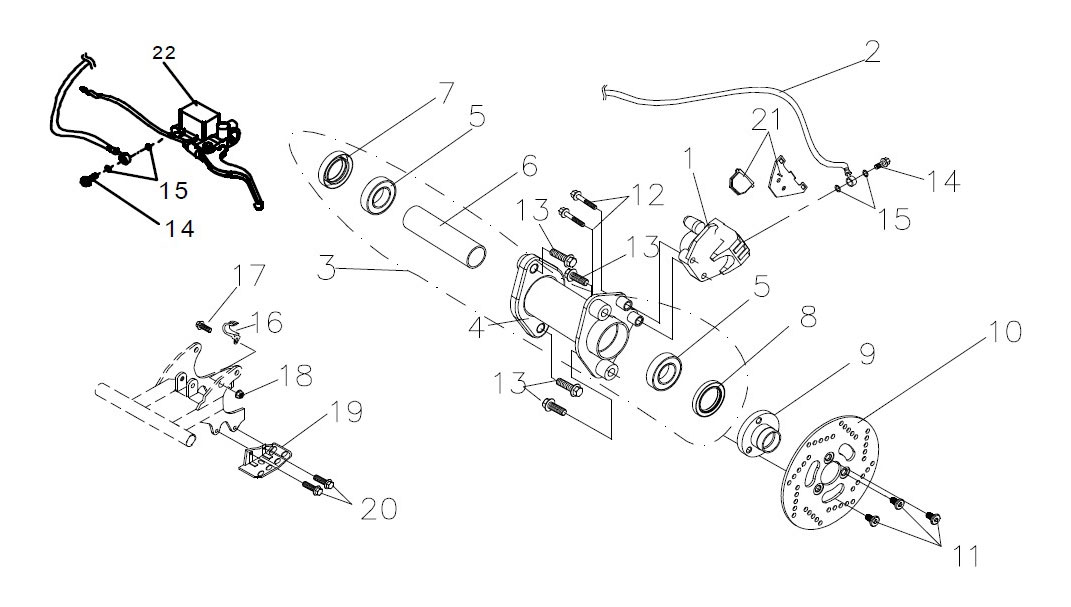

Rear Brake
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Disc Caliper
A10A-562100-N0000
|
|||
| 2 |
Hose, Rear Disk Brake
A10S-563100-N0000
|
|||
| 3 |
Rear Axle Bearing Carrier
31300-A02-000
|
|||
| 4 |
Rear Holder Disk
A10S-54520A-N0000
|
|||
| 5 |
Bearing, 6006ZZ
95100-T6006ZZ
|
$20.35 | ||
| 6 |
Spacer, 135mm
93330-A01-00A
|
$13.47 | ||
| 7 |
Oil Seal, 35x55x11
96100-355511A
|
$13.38 | ||
| 8 |
Oil Seal, 40x55x7
96100-405507
|
$13.31 | ||
| 9 |
Rear Holder Disk
A10S-564910-N0000
|
|||
| 10 |
Rear Brake Disc 180mm
A10S-564180-N0000
|
|||
| 11 |
Hex Socket Bolt, M10x14
91760-10014-08G
|
$1.75 | ||
| 12 |
Hex Washer Face Bolt, M8x38
91710-08038-12G
|
$2.56 | ||
| 13 |
Hex Washer Face Bolt, M12x28
91710-12028-17G
|
$5.67 | ||
| 14 |
Bolt, Brake Hose
91830-A01-000
|
$5.79 | ||
| 15 |
Washer, Copper, 10.2x14x1
93101-A01-000
|
$1.59 | ||
| 16 |
Clip, Brake Hose
83115-A01-000
|
$1.68 | ||
| 17 |
Hex Washer Face Bolt, M6x16
91700-06016-10G
|
$2.13 | ||
| 18 |
Nut, Insert Lock, M6
92130-06S-10G
|
$2.13 | ||
| 19 |
CHAIN SUPPORTER
A10A-269700-N0000
|
|||
| 20 |
Bolt - Lower Bumper M8x12
91700-08012-12G
|
$2.99 |
