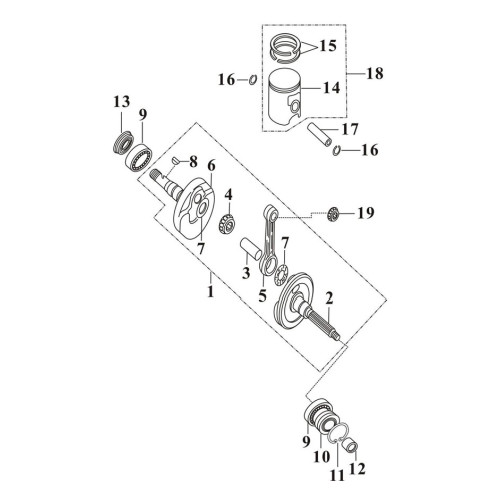

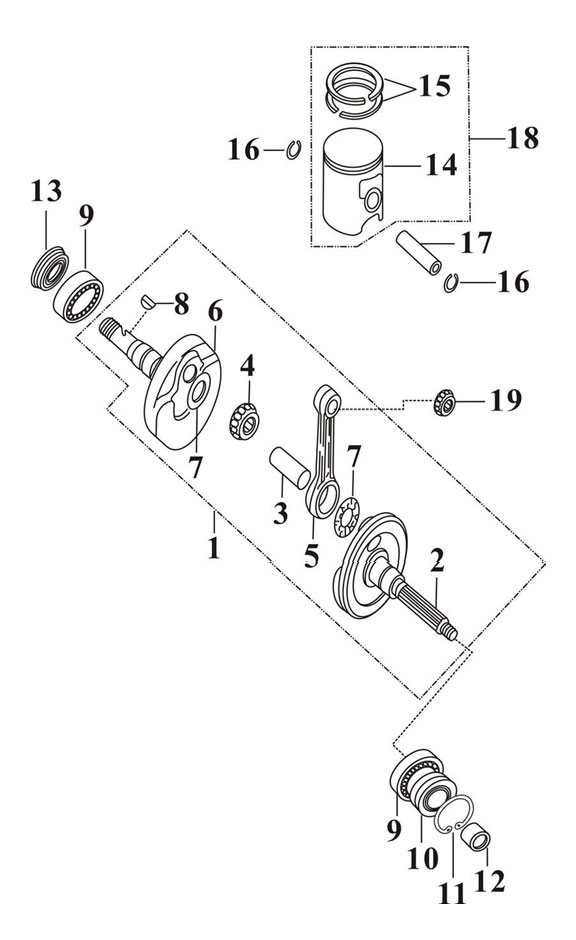

Piston Crankshaft
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANK SHAFT COMP. 90cc
Dk90-14100-00-00
|
|||
| 1-A |
CRANK SHAFT COMP.50cc
DK50-14111-00-00
|
|||
| 2 |
BALL BEARING 6204JR2CS31P
96129-06204-00
|
|||
| 3 |
OIL SEAL 20 42/43 8/9
91238-20042-80
|
|||
| 4 |
OIL SEAL 6206
DK50-11113-00-00
|
|||
| 7 |
PISTON
M3A-12611-00-00
|
|||
| 7A |
PISTON-50cc
DK50-12611-00-00
|
|||
| 8A |
PISTON PIN 50 cc
DK50-12631-00-00
|
|||
| 8 |
PISTON PIN 90 cc
DK90-12631-00-00
|
|||
| 8 |
WOORDRUFF KEY 3X13
DK50-14151-00-00
|
|||
| 9A |
PISTON PIN CLIP 10MM- 50cc
94601-10100-00
|
|||
| 9 |
PISTON PIN CLIP 12MM
94601-10120-00
|
|||
| 10 |
PISTON RING SET
M3A-12620-00-00
|
|||
| 10A |
PISTON RING SET -50cc
DK50-12620-00-00
|
|||
| 11 |
CIR-CLIP 42MM
94521-18420-00
|
|||
| 12 |
STARTER COLLAR
DK90-14153-00-00
|
|||
| 18 |
PISTON ASSY
M3A-12600-00-00
|
|||
| 18-1 |
PISTON ASSY 50cc 25 drr labeled only stock legal piston
DK50-12600-00-00
|
|||
| 19-1 |
CON-ROD SMALL END BRG.50
DK50-14116-00-00
|
|||
| 19 |
CON-ROD SMALL END BRG.90
DK90-14116-00-00
|
