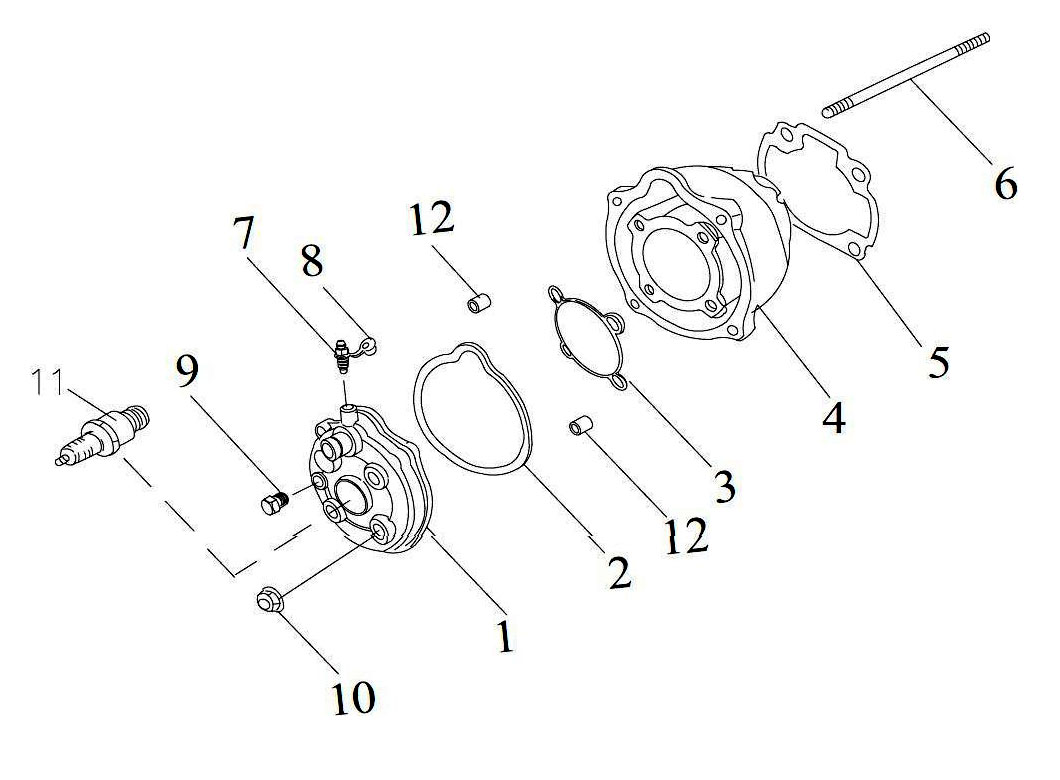

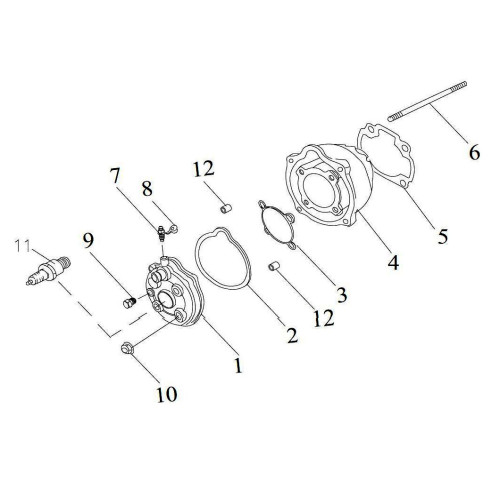

Cylinder
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1-1 |
LIQUID CYLINDER HEAD 50cc
DK50C-125110-00000
|
|||
| 1 |
LIQUID CYLINDER HEAD 90cc
DK90C-125110-00000
|
|||
| 2 |
CYLINDER HEAD GASKET
DK90C-181110-00000
|
|||
| 2-1 |
CYLINDER HEAD GASKET
DK50C-181110-00000
|
|||
| 3 |
RING OIL CYLINDER
12300-E01-000
|
|||
| 4-1 |
LIQUID CYLINDER 50cc
DK50C-124000-00000
|
|||
| 4 |
LIQUID CYLINDER 90cc
DK90C-124000-00000
|
|||
| 5 |
CYLINDER GASKET
M3A-18216-00-00
|
|||
| 5-1 |
CYLINDER GASKET 50cc
DK50-18216-00-00
|
|||
| 6-1 |
STUD BOLT M7x109 50cc
DK50-12422-00-00
|
|||
| 6 |
STUD BOLT M7X124 90cc
DK90-12422-00-00
|
|||
| 7 |
Bolt,Leaking
15872-E01-000
|
$5.05 | ||
| 8 |
Cap,Leaking
15873-E01-000
|
$2.19 | ||
| 9 |
Temp. Switch, 102/3A
15240-E01-000
|
$45.60 | ||
| 10 |
FLANGE NUT 7MM
94050-07000-04
|
|||
| 11 |
SPARK PLUG
DK50-33111-00-00
|
|||
| 12 |
Pin, Dowel, 3x11.8
94002-030118
|
$1.55 |
