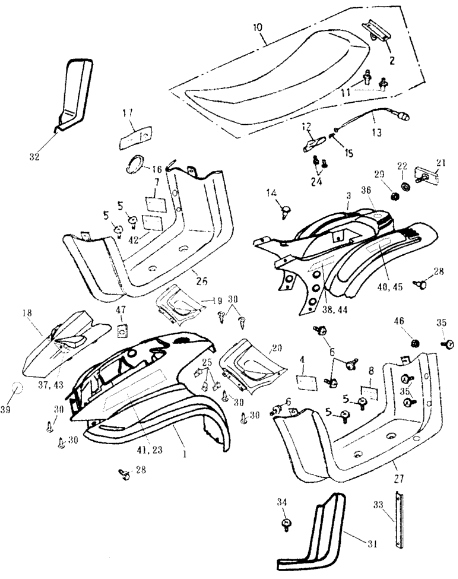

Body Cover | Seat
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Cover
A64301166000RD
|
|||
| 2 |
Seat Bracket
A77201145000
|
|||
| 3 |
Rear Cover
A83400166001RD
|
|||
| 4 |
Warning Decal (Atv General)
704900302
|
|||
| 5 |
Pan Head Phillips Bolt M6 X 15
A9370106015S
|
$2.14 | ||
| 6 |
Pan Head Phillips Bolt M6 X 20
A9380006020S
|
|||
| 7 |
Warning Label, Under 6 (English)
704900300
|
|||
| 8 |
Warning Label (English)
704900005
|
|||
| 9 |
U Plate Nut (6 Mm)
A903440600A
|
|||
| 10 |
Seat
A77200166000
|
|||
| 11 |
Seat Bolt
A77203145000
|
|||
| 12 |
Seat Lock
A77230145000
|
|||
| 13 |
Seat Release Cable
A77212145000
|
|||
| 14 |
Ladder Bolt (6 X 12.5 X 3.5)
A901110601218C
|
|||
| 15 |
Reset Spring
A77213145000
|
|||
| 16 |
Rubber Strip
A91350145000
|
|||
| 17 |
Tool Bag
A50120101000
|
|||
| 18 |
Front Visor, Black
A64302166001BK
|
|||
| 19 |
R.H. Body Cover Trim
A83504166000BK
|
|||
| 20 |
L.H. Body Cover Trim
A83604166000BK
|
