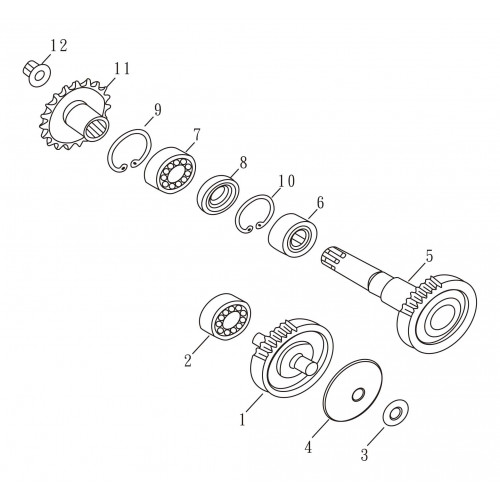

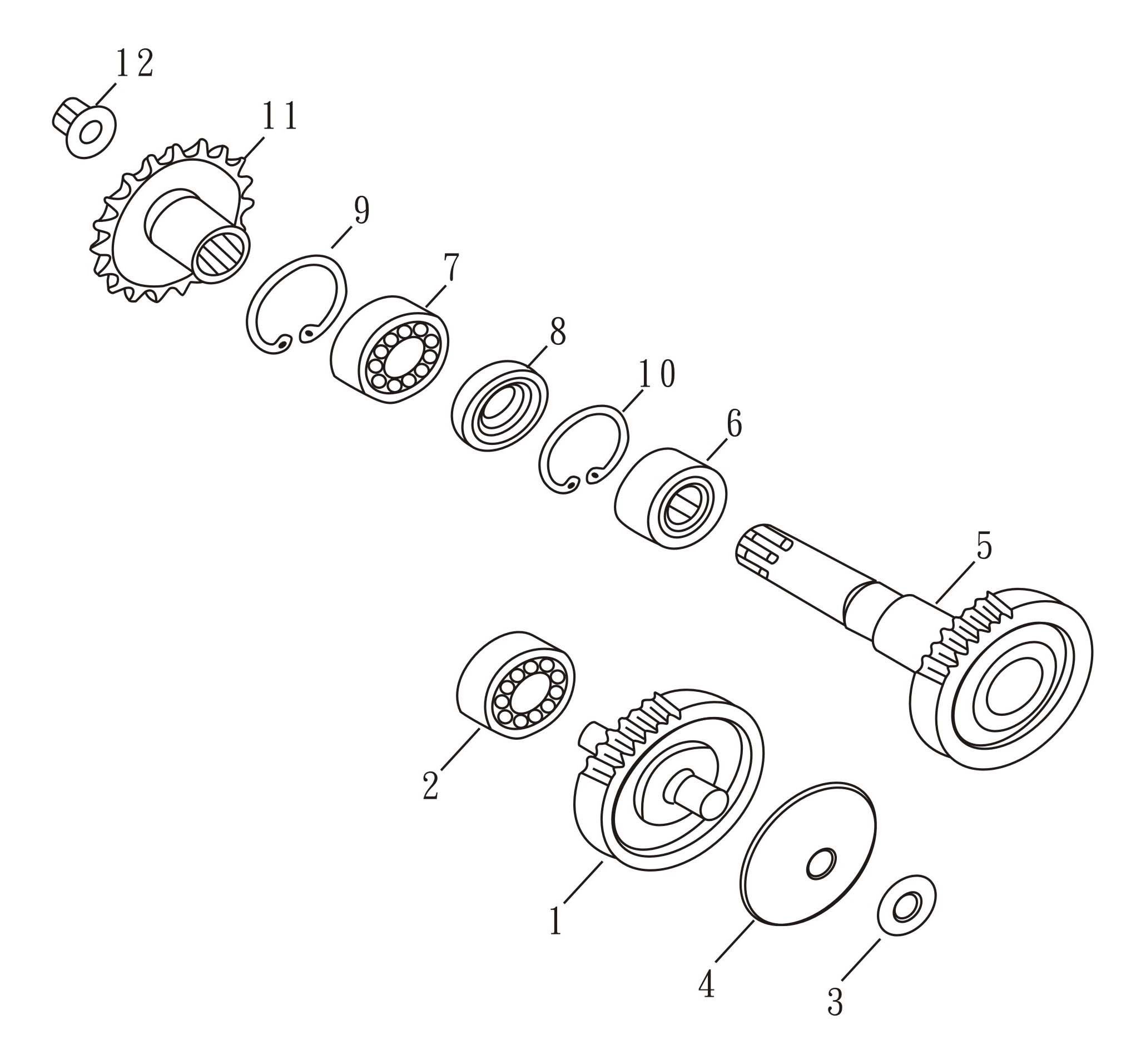

Transmission
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
COUNTER SHAFT COMP.
M2A-26110-00-00
|
|||
| 2 |
BALL BEARING 6201C3
96123-06201-00
|
|||
| 3 |
PLATE WASHER 12MM
94101-12223-00
|
|||
| 4 |
CONICAL SPRING WASHER
M1A-26121-00-00
|
|||
| 5 |
FINAL SHAFT COMP.
M2A-26170-00-00
|
|||
| 6 |
NEEDLE BEARING NK 25/16
96130-02516-00
|
|||
| 7 |
BALL BEARING 6004LLUA/L10
96120-06004-40
|
|||
| 8 |
OIL SEAL 25X35X6
91201-25035-60
|
|||
| 9 |
CIR-CLIP 42MM
94521-18420-00
|
|||
| 10 |
CIR-CLIP 28MM
94521-12330-00
|
|||
| 11 |
DRIVE SPROCKET (19T)
M1A-26911-00-01
|
|||
| 12 |
FLANGE U NUT 14MM
94061-14000-01
|
