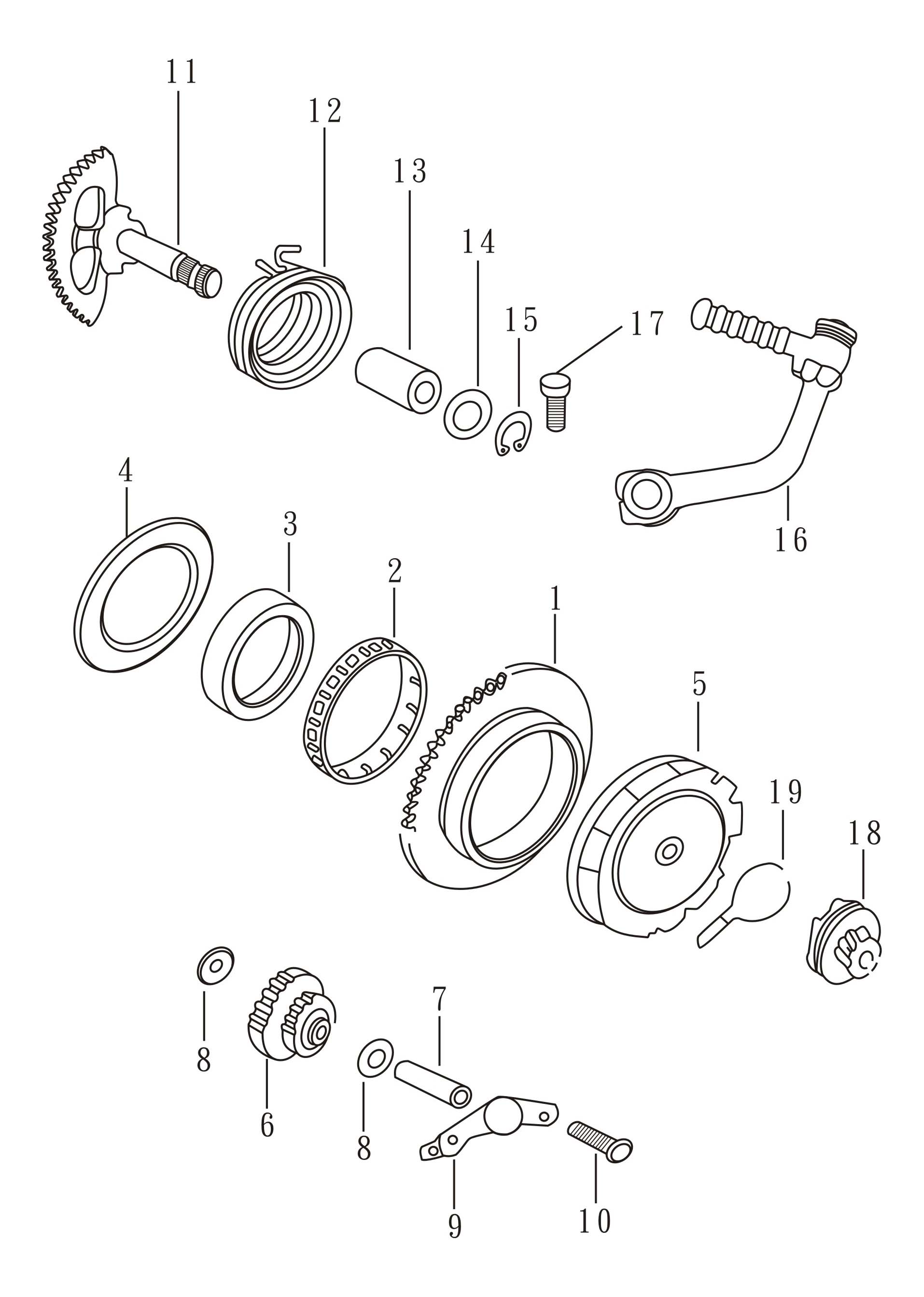

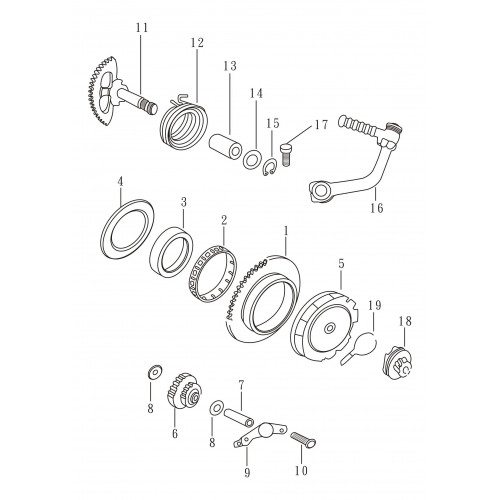

Starter
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
STARTER CLUTCH GEAR COMP. (68T)
M1A-32511-00-00
|
|||
| 2 |
NEEDLE BEARING
M1A-32423-00-00
|
|||
| 3 |
GEAR BOSS
M1A-32521-00-00
|
|||
| 4 |
PLAIN WASHER 55X75X0.5
M1A-32434-00-00
|
|||
| 5 |
STARTER CLUTCH OUTER ASSY.
M2A-32410-00-01
|
|||
| 6 |
STARTER IDLE GEAR COMP.(68T)
M1A-32310-00-00
|
|||
| 7 |
START. IDLE GEAR SHAFT
M1A-32321-00-00
|
|||
| 8 |
PLATE WASHER 8MM
94101-08165-24
|
|||
| 9 |
STARTER IDLE GEAR PLATE
M1A-32341-00-00
|
|||
| 10 |
PAN HEAD SCREW M6X12
93500-06012-03
|
|||
| 11 |
KICK START. SPINDLE COMP.
M1A-27131-00-00
|
|||
| 12 |
KICK STARTER SPRING
M1A-27141-00-00
|
|||
| 13 |
KICK SPINDLE BUSH
M1A-27172-00-00
|
|||
| 14 |
PLATE WASHER 15.2X28X1
94101-15283-24
|
|||
| 15 |
CIR-CLIP 15MM
94511-10150-00
|
|||
| 16 |
KICK STARTER ARM
M1A-27111-00-00
|
|||
| 17 |
HEX. BOLT 6X25
92000-06025-02
|
|||
| 18 |
START.SMALL GEAR COMP.
M1A-27211-00-00
|
|||
| 19 |
START. GEAR FRICTION SPRING
M1A-27224-00-00
|
