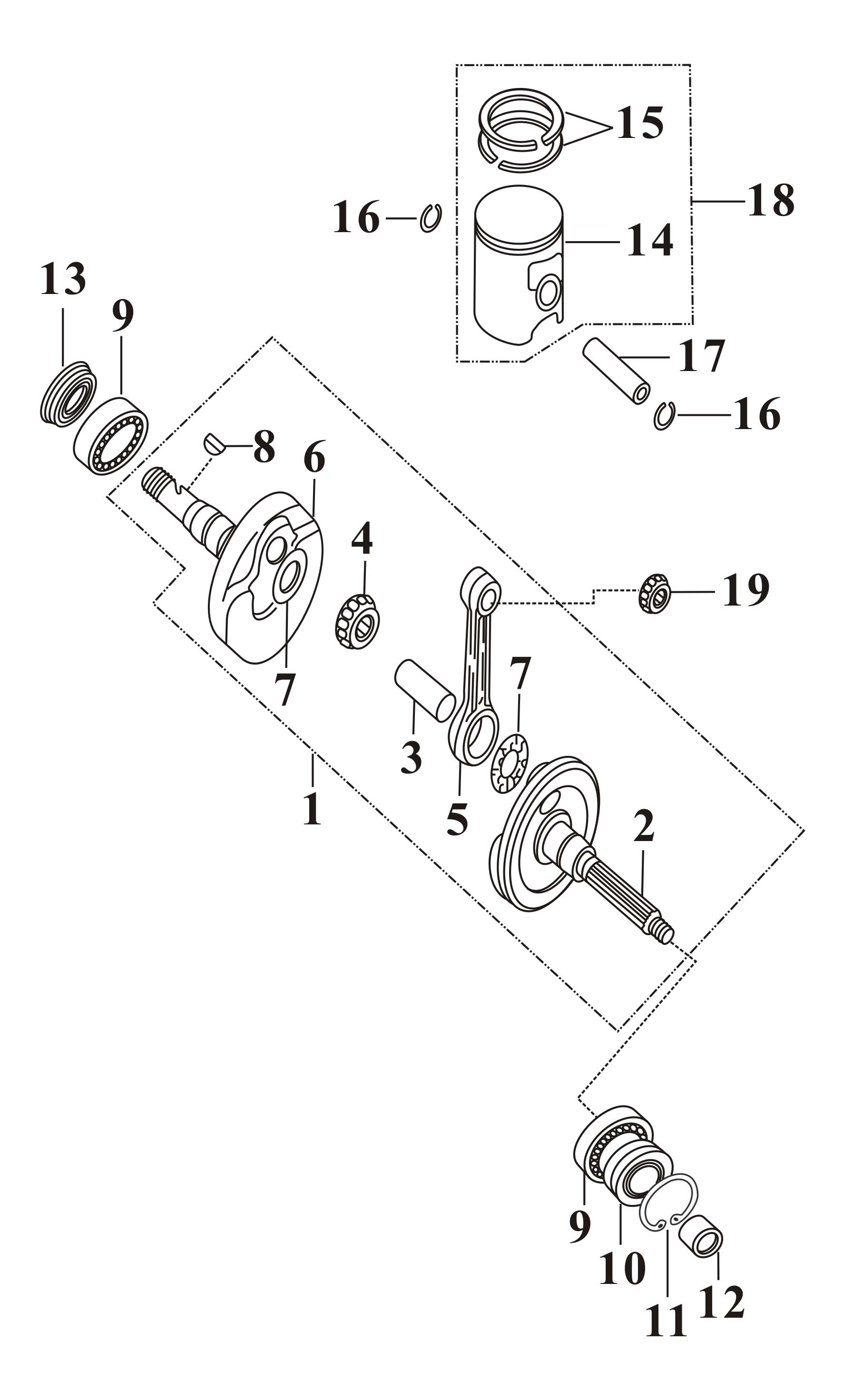

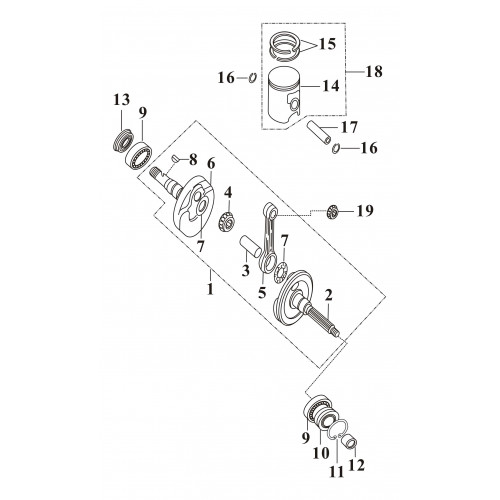

Piston Crankshaft
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANK SHAFT COMP.
M3A-14100-00-00
|
|||
| 2 |
L. CRANK SHAFT
M3A-14112-00-00
|
|||
| 3 |
CRANK PIN
M2A-14131-00-00
|
|||
| 4 |
CON-ROD BIG END BRG.
M2A-14115-00-00
|
|||
| 5 |
CONNECTING ROD
M3A-14114-00-00
|
|||
| 6 |
R. CRANK SHAFT
M3A-14111-00-00
|
|||
| 7 |
CONNECTING ROD WASHER
M2A-14141-00-00
|
|||
| 8 |
WOORDRUFF KEY 3X13
M1A-14151-00-00
|
|||
| 9 |
BALL BEARING 6204JR2CS31P
96129-06204-00
|
|||
| 10 |
OIL SEAL 20 42/43 8/9
91238-20042-80
|
|||
| 11 |
CIR-CLIP 42MM
94521-18420-00
|
|||
| 12 |
STARTER COLLAR
M2A-14153-00-00
|
|||
| 13 |
OIL SEAL 6206
M1A-11113-00-00
|
|||
| 14 |
PISTON
M3A-12611-00-00
|
|||
| 15 |
PISTON RING SET
M3A-12620-00-00
|
|||
| 16 |
PISTON PIN CLIP 12MM
94601-10120-00
|
|||
| 17 |
PISTON PIN
M2A-12631-00-00
|
|||
| 18 |
PISTON ASSY
M3A-12600-00-00
|
|||
| 19 |
CON-ROD SMALL END BRG.
M2A-14116-00-00
|
