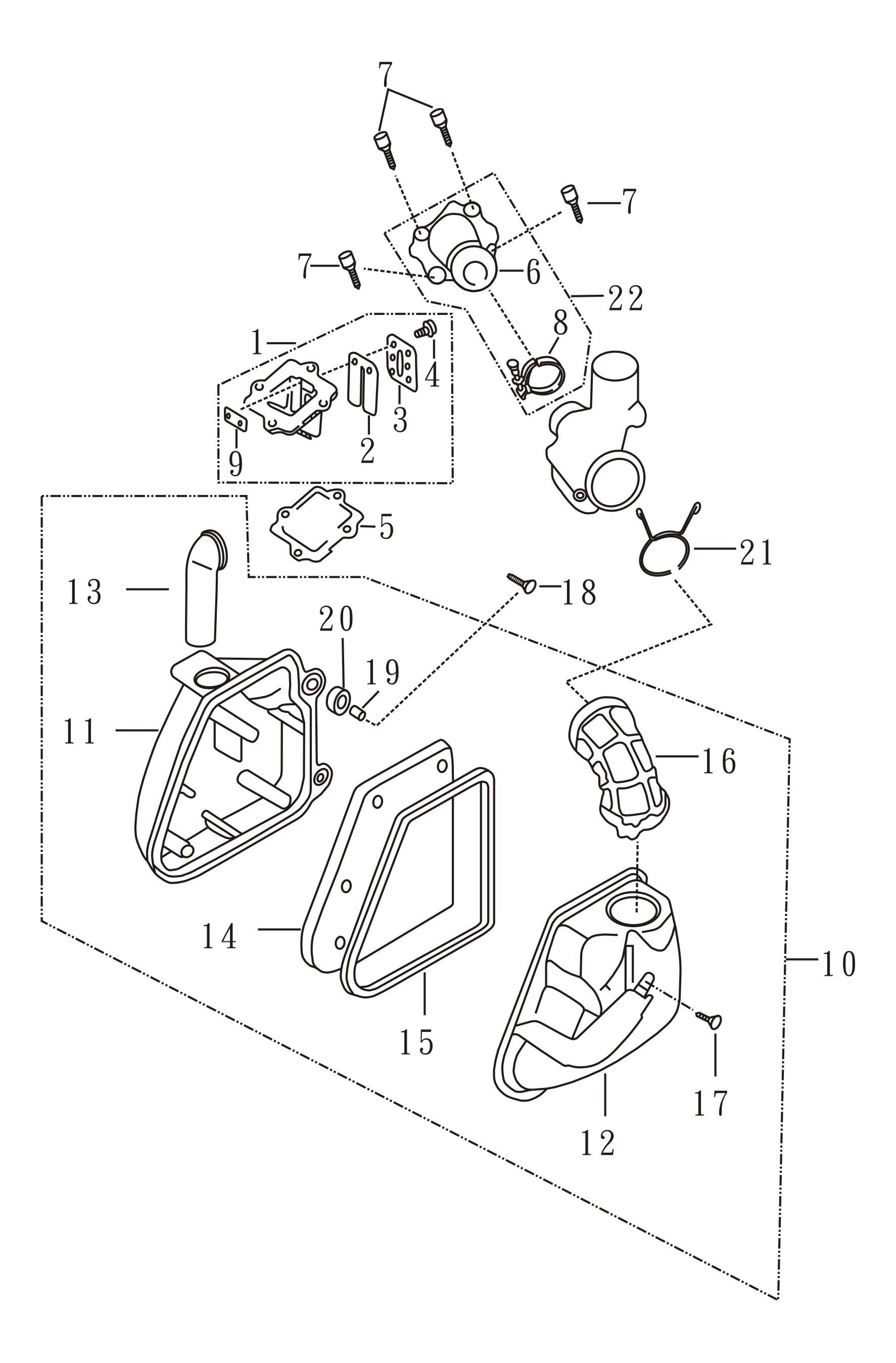

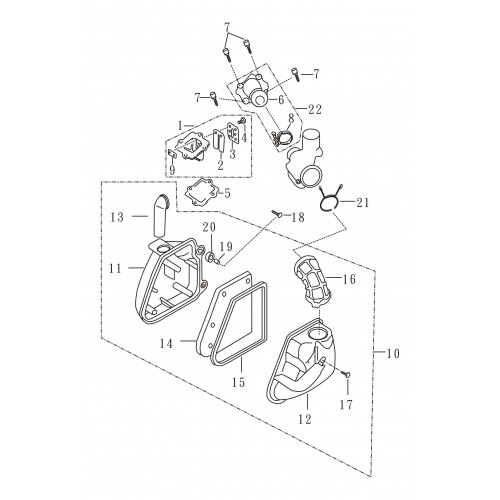

Intake
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
REED VALVE ASSY.
M2A-19240-00-00
|
|||
| 2 |
REED VALVE
M2A-19241-00-00
|
|||
| 3 |
REED VALVE STOPPER
M2A-19246-00-00
|
|||
| 4 |
SCREW W/WASHER 3X8
93892-03008-01
|
|||
| 5 |
VALVE SEAT GASKET
M1A-18251-00-00
|
|||
| 6 |
INTAKE MANIFOLD
M1A-19211-00-00
|
|||
| 7 |
FLANGE BOLT M6X16
96700-06020-02
|
|||
| 8 |
HOSE CLAMP
M1A-19231-00-00
|
|||
| 9 |
REED VALVE PLATE
M1A-19243-00-00
|
|||
| 10 |
AIR CLEANER ASSY.
A1A-19110-00-00
|
|||
| 11 |
AIR CLEANER CASE,1
A1A-19111-00-00
|
|||
| 12 |
AIR CLEANER CAP,1
A1A-19112-00-00
|
|||
| 13 |
DUCT
A1A-19113-00-00
|
|||
| 14 |
AIR CLEANER ELEMENT
A1A-19114-00-00
|
|||
| 15 |
SEAL,1
A1A-19115-00-00
|
|||
| 16 |
AIR CLEANER JOINT,1
A1A-19131-00-00
|
|||
| 17 |
TAPPING SCREW 5X25
93915-05025-02
|
|||
| 18 |
FLANGE SCREW M6X20
96001-06020-01
|
|||
| 19 |
COLLAR
A1A-19186-00-00
|
|||
| 20 |
GROMMET
A1A-19185-00-00
|
