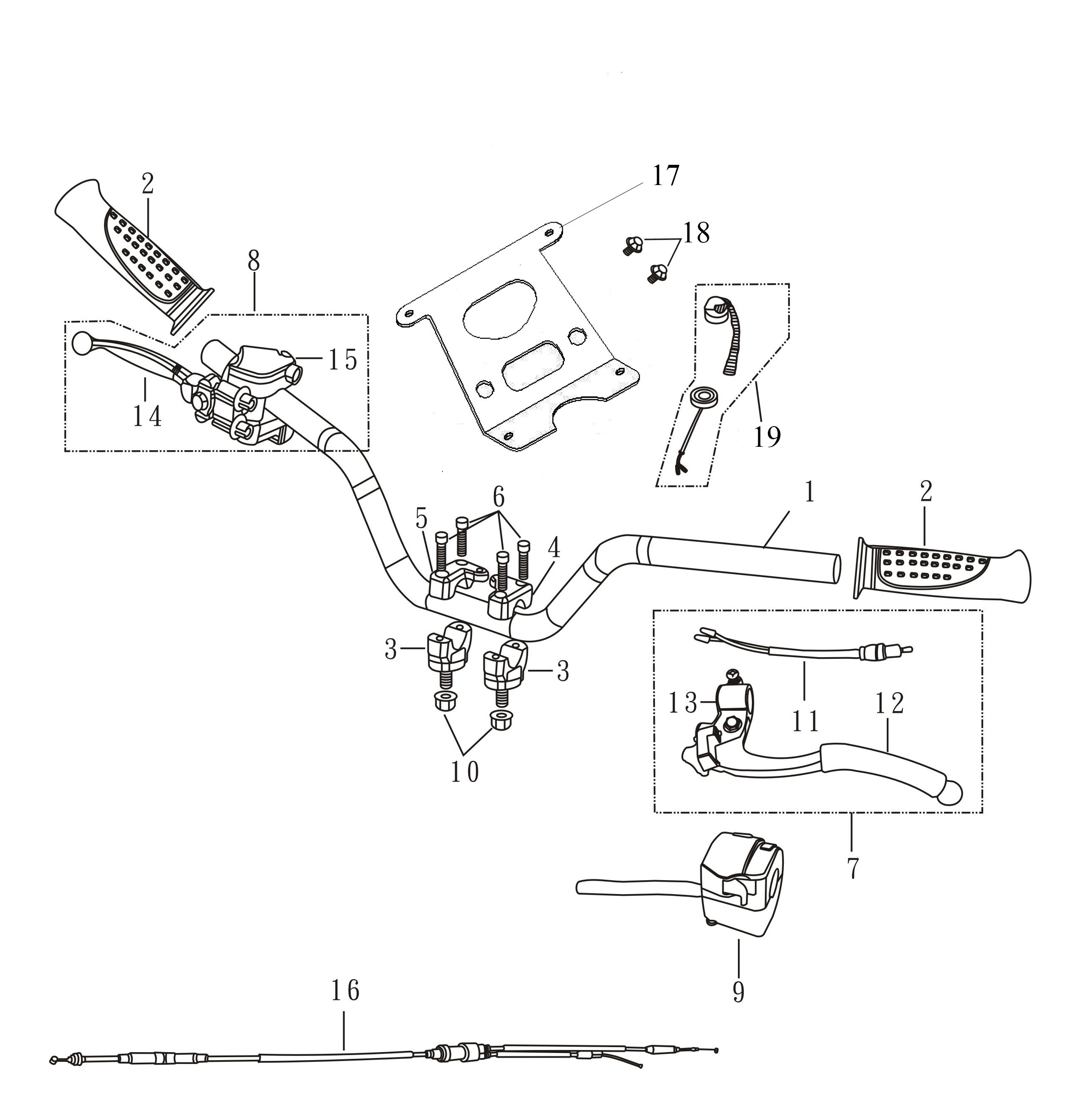

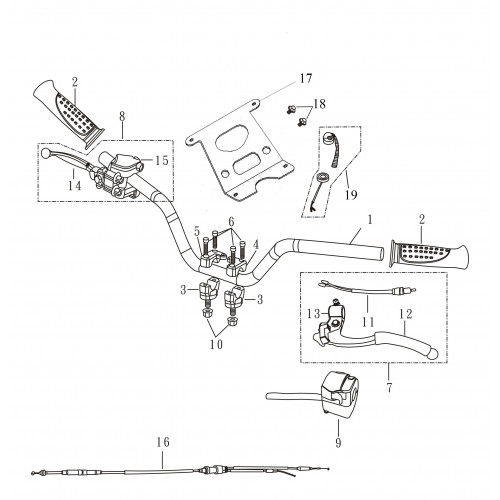

Handle Bar
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
HANDLE COMP.
A10A-72110-00-10
|
|||
| 2 |
GRIP
A1A-72251-00-01
|
|||
| 3 |
HANDLE HOLDER ASSY.
A1A-72222-00-10
|
|||
| 4 |
HANDLE HOLDER COVER,1
A1A-72225-00-00
|
|||
| 5 |
HANDLE HOLDER COVER,2
A1A-72235-00-00
|
|||
| 6 |
SOCKEJ BOLT 6X25
96700-06025-02
|
|||
| 7 |
LEVER ASSY. LEFT
A2A-37750-00-00
|
|||
| 8 |
LEVER ASSY. RIGHT
A2A-37850-00-02
|
|||
| 9 |
LEFT HANDLE SWITCH ASSY.
A1A-37700-00-00
|
|||
| 10 |
FLANGE U NUT 10MM
94061-10001-03
|
|||
| 11 |
STOP SWITCH ASSY.
A1A-37770-00-00
|
|||
| 12 |
LEFT LEVER
A1A-72253-00-00
|
|||
| 13 |
LEFT BODY
A1A-37751-00-00
|
|||
| 14 |
RIGHT LEVER
A2A-72263-00-00
|
|||
| 15 |
RIGHT BODY
A2A-37851-00-02
|
|||
| 16 |
THROTTLE CABLE ASSY
A1A-68410-00-00
|
|||
| 17 |
BRACKET FOR HANDLE COVER
A10A-723150-N0000
|
|||
| 18 |
FLANGE BOLT M6X12
96000-06012-70
|
|||
| 19 |
SAFETY SWITCH
A1A-66212-00-00
|
