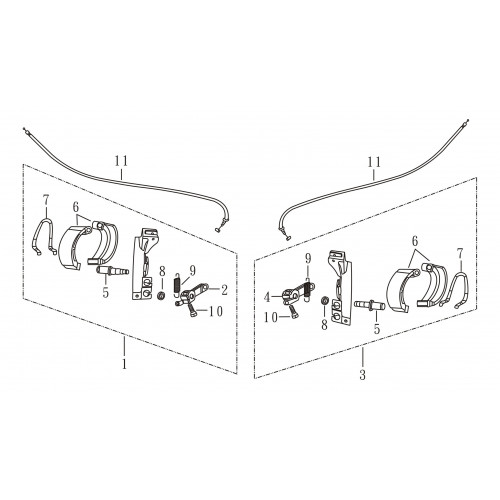

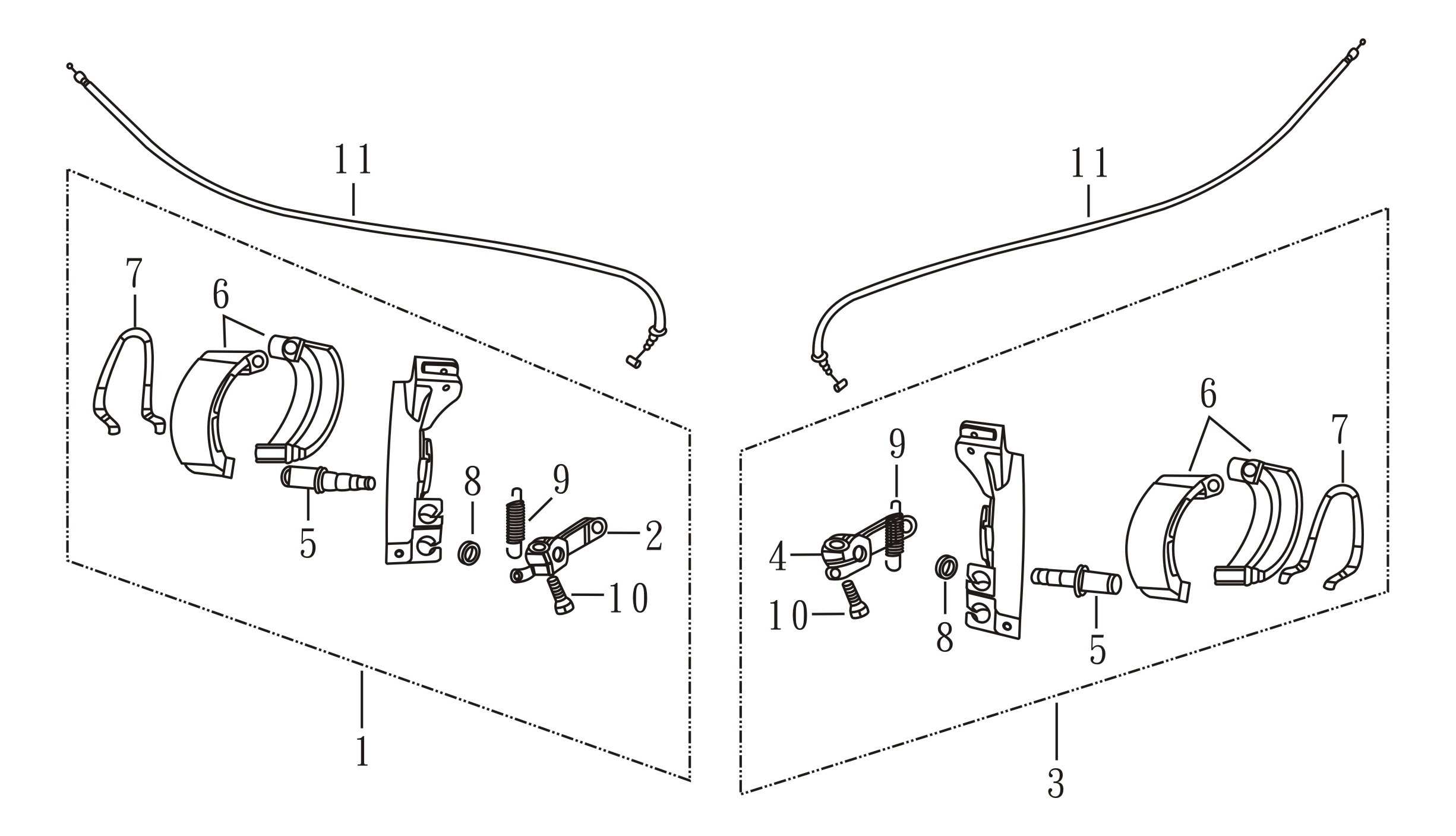

Front Brake
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
FRONT BRAKE PANEL ASSY,R
A1A-55450-00-00
|
|||
| 2 |
CAM SHAFT LEVER,2
A1A-55612-00-00
|
|||
| 3 |
FRONT BRAKE PANEL ASSY.L
A1A-55440-00-00
|
|||
| 4 |
CAM SHAFT LEVER,1
A1A-55611-00-00
|
|||
| 5 |
CAM SHAFT,1
A1A-55621-00-00
|
|||
| 6 |
BRAKE SHOE SET
A1A-55420-00-00
|
|||
| 7 |
SPRING
A1A-55461-00-00
|
|||
| 8 |
DUST SEAL
A1A-55638-00-00
|
|||
| 9 |
TENSIION SPRING
A1A-55635-00-00
|
|||
| 10 |
BOLT 5X23
A1A-55616-00-00
|
|||
| 11 |
BRAKE CABLE,1
A10A-681110-N0000
|
