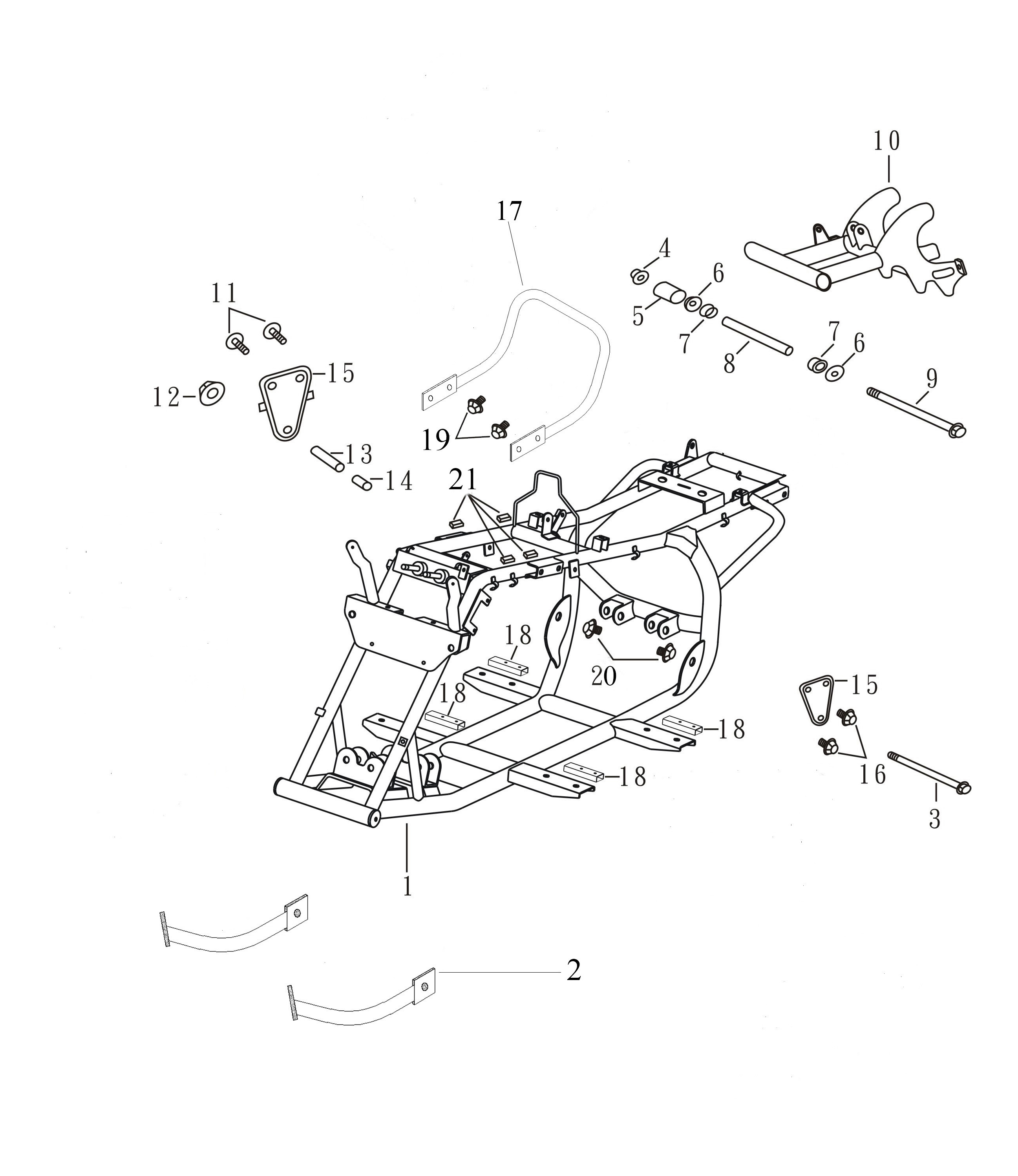

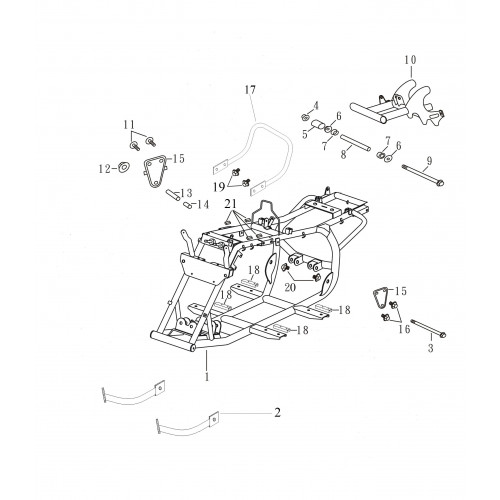

Frame Body
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
FRAME COMP
A10A-51110-00-10
|
|||
| 2 |
BRACKET FOR FRONT WINKER COVER
A10A-522510-N0000
|
|||
| 3 |
FIT BOLT FOR ENG.
95802-12220-01-00
|
|||
| 4 |
FLANGE U NUT 14MM
94061-14000-01
|
|||
| 5 |
RUBBER SLEEVE
A1A-58175-00-00
|
|||
| 6 |
REAR FORK SEAL COVER
A1A-58165-00-00
|
|||
| 7 |
BUSHING CONTAIN OIL
A1A-58155-00-00
|
|||
| 8 |
REAR FORK SPACER SLEEVE
A1A-58151-00-00
|
|||
| 9 |
REAR FORK SET BOLT
A1A-58161-00-00
|
|||
| 10 |
REAR FORK COMP
A10A-581100-N0000
|
|||
| 11 |
FLANGE BOLT 8X20
95800-08020-02
|
|||
| 12 |
FLANGE U NUT 12MM
94061-12000-03
|
|||
| 13 |
CORE TUBE 17X12X103
A1A-58644-00-10
|
|||
| 14 |
CORE TUBE 17X12X21
A1A-58645-00-10
|
|||
| 15 |
E/G HANGER BRKT,1
A1A-52142-00-00
|
|||
| 16 |
FLANGE BOLT 8X12
95800-08012-02
|
|||
| 17 |
REAR HANDLE BAR
A10A-56470-00-30
|
|||
| 18 |
DAMPER,2
A1A-52157-00-00
|
|||
| 19 |
FLANGE BOLT M8X16
95800-08016-02
|
|||
| 20 |
HEXAGON FLANGE BOLT M8X36
95701-08036-02
|
